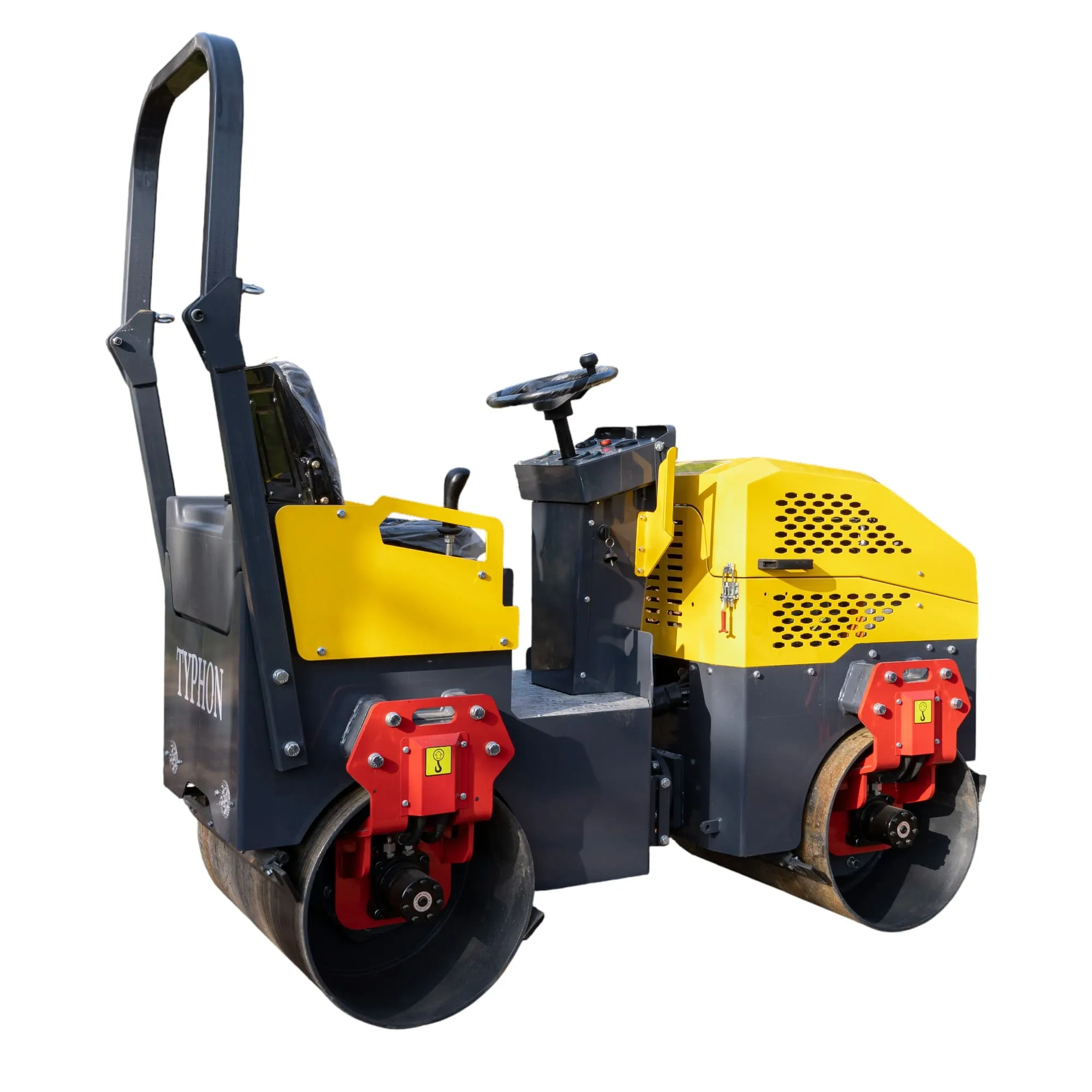

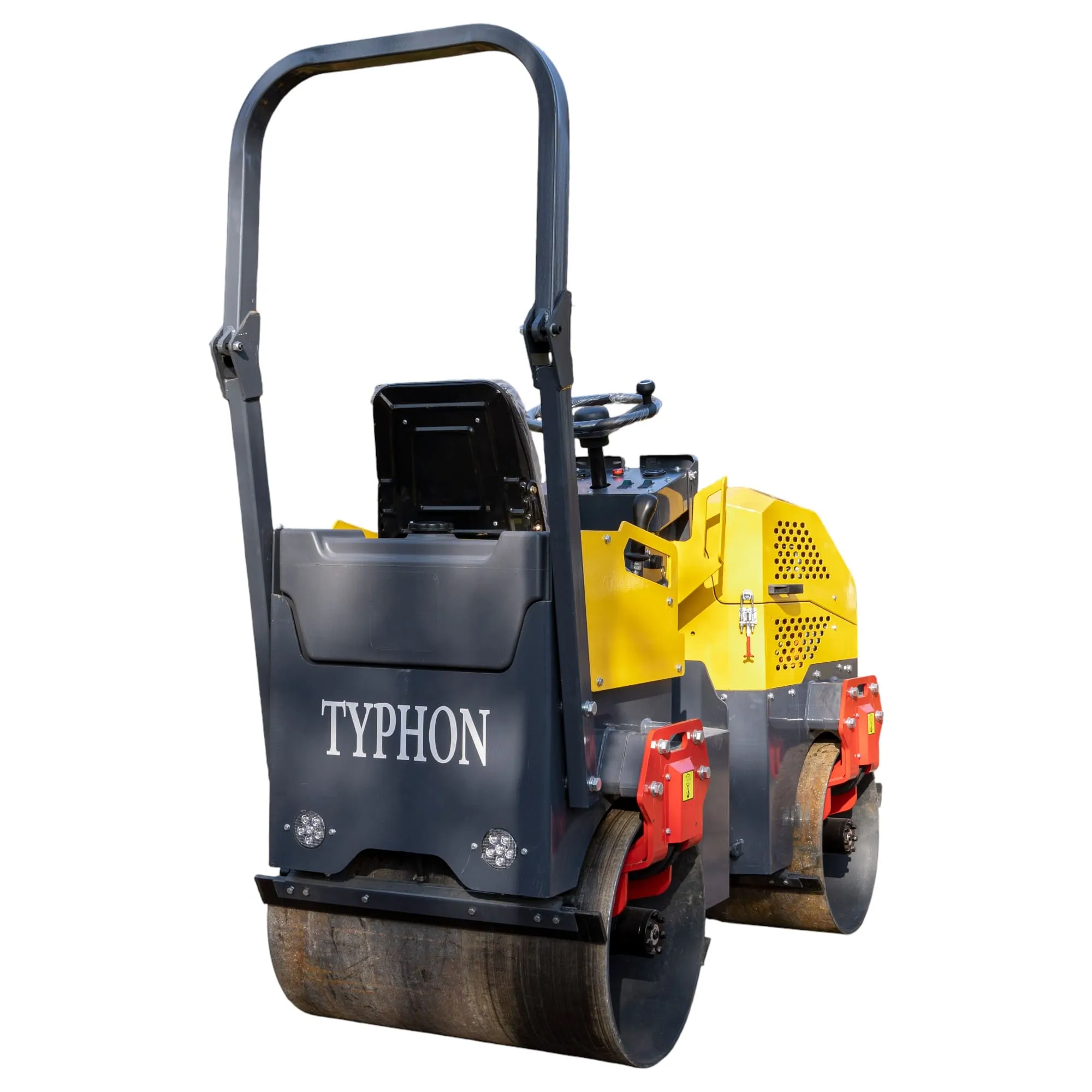

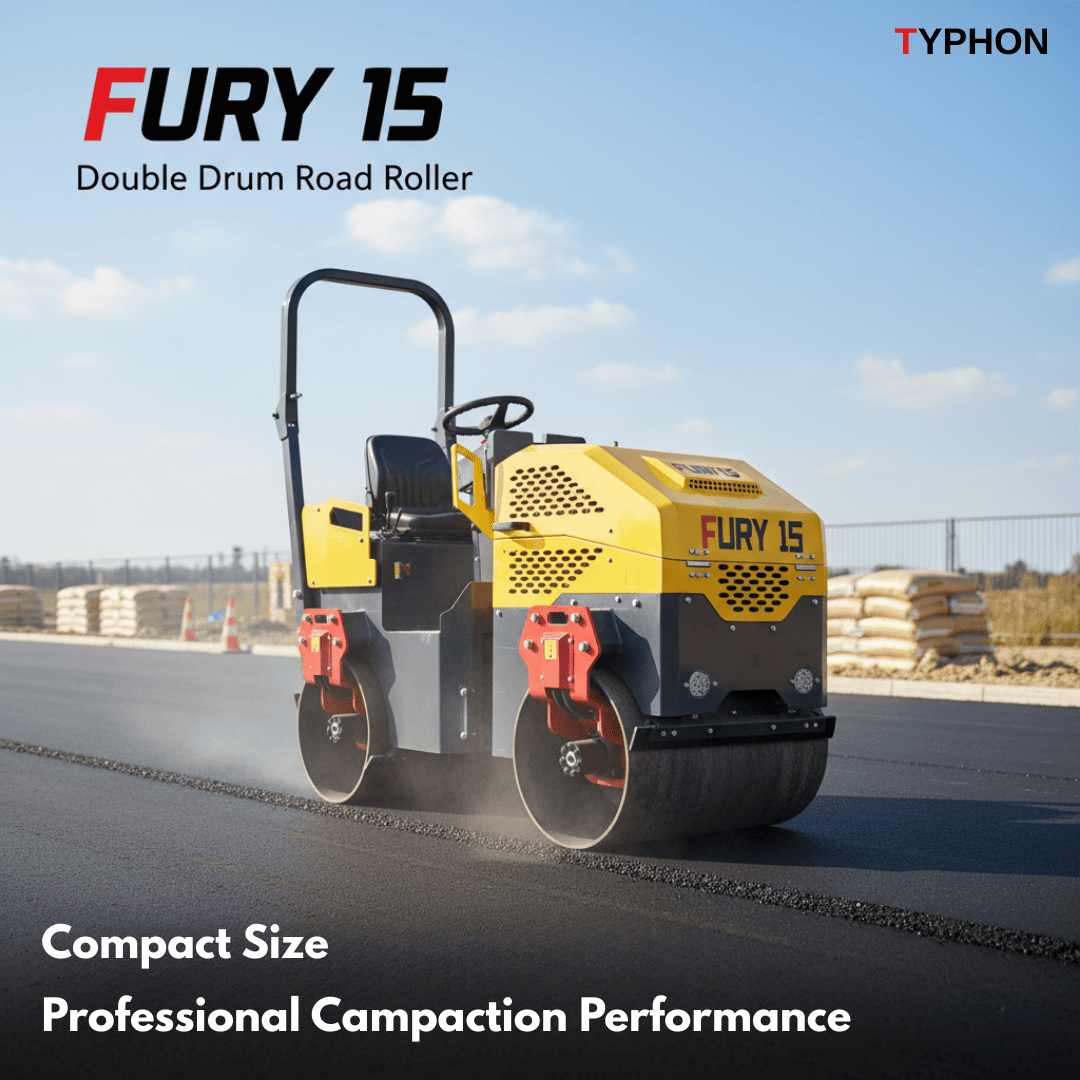

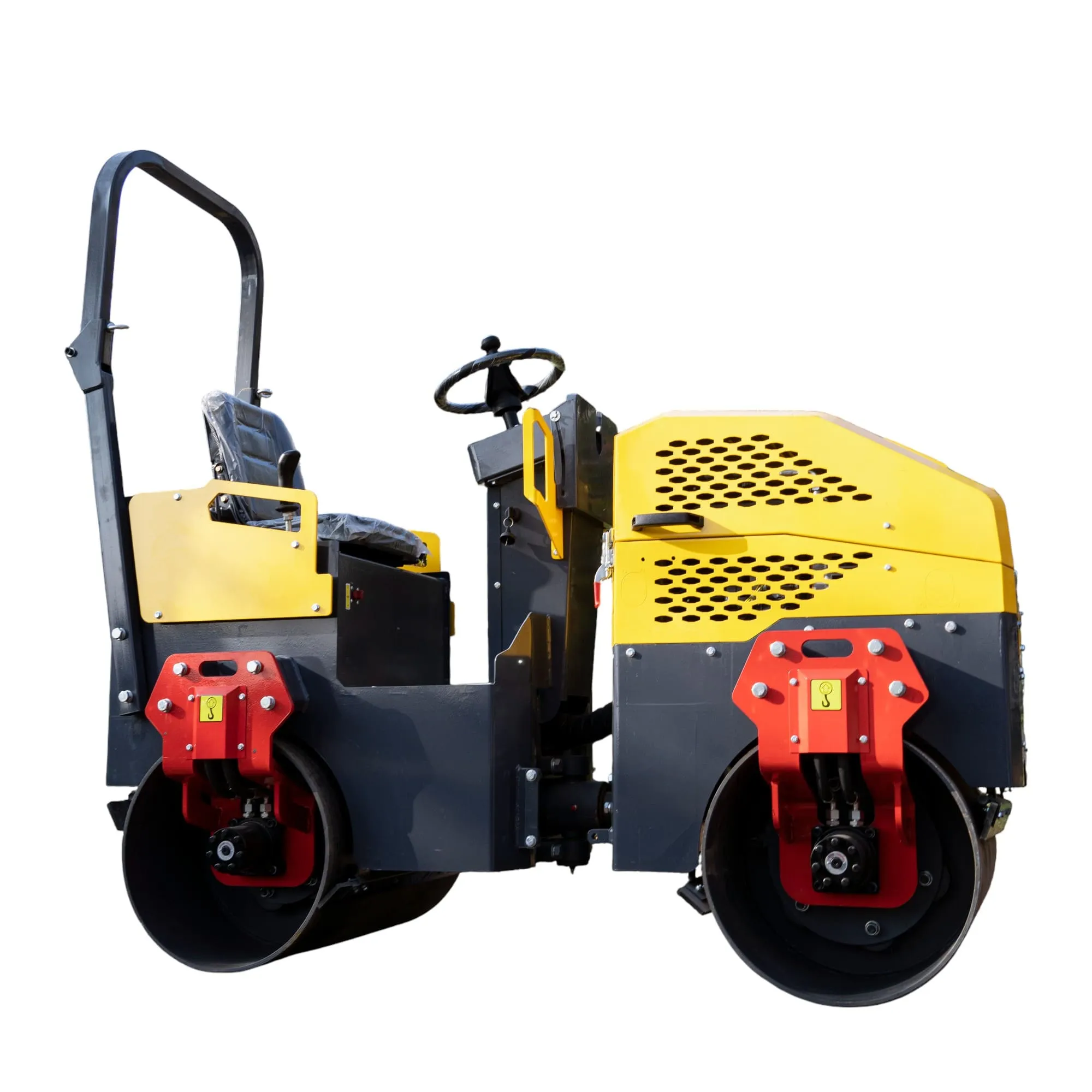

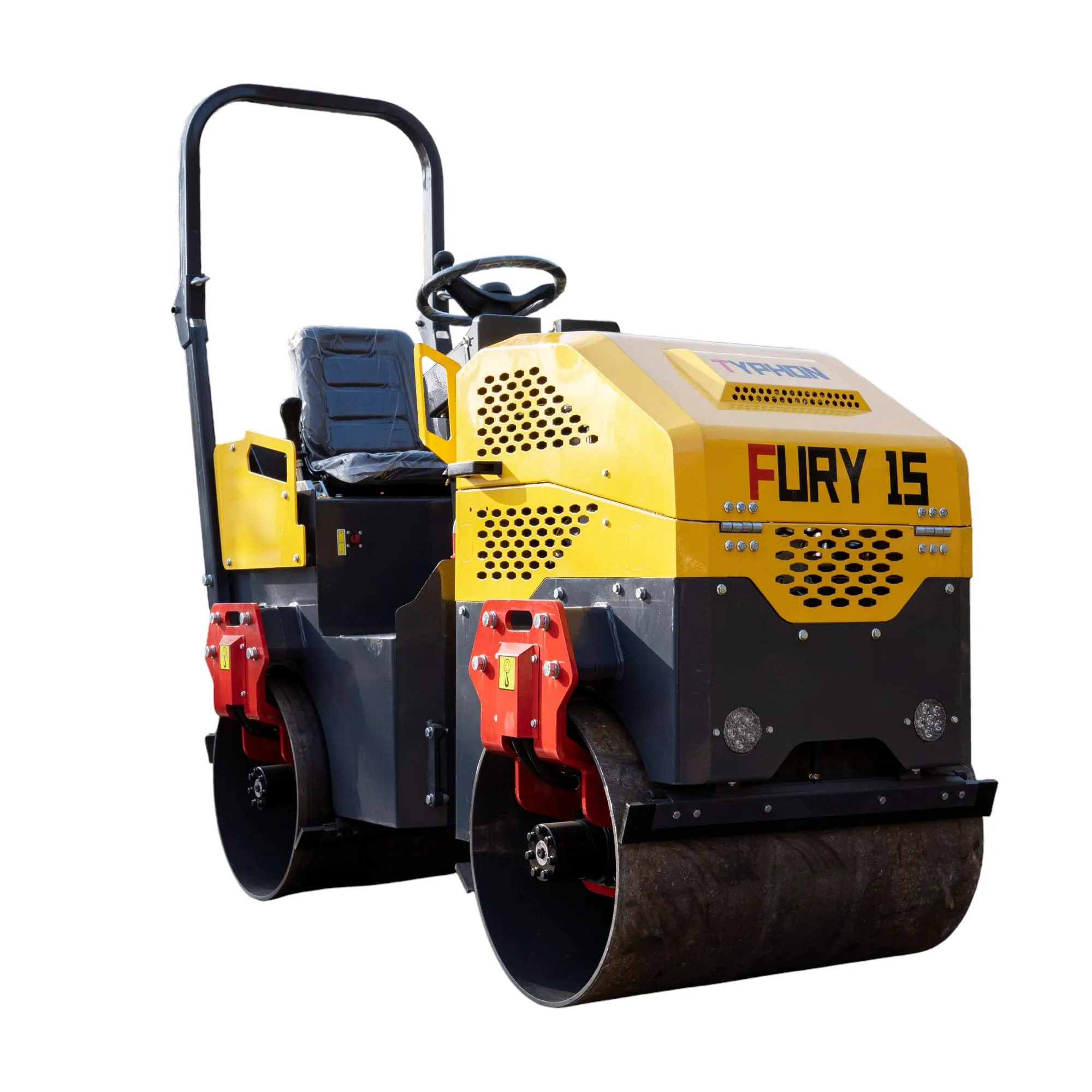

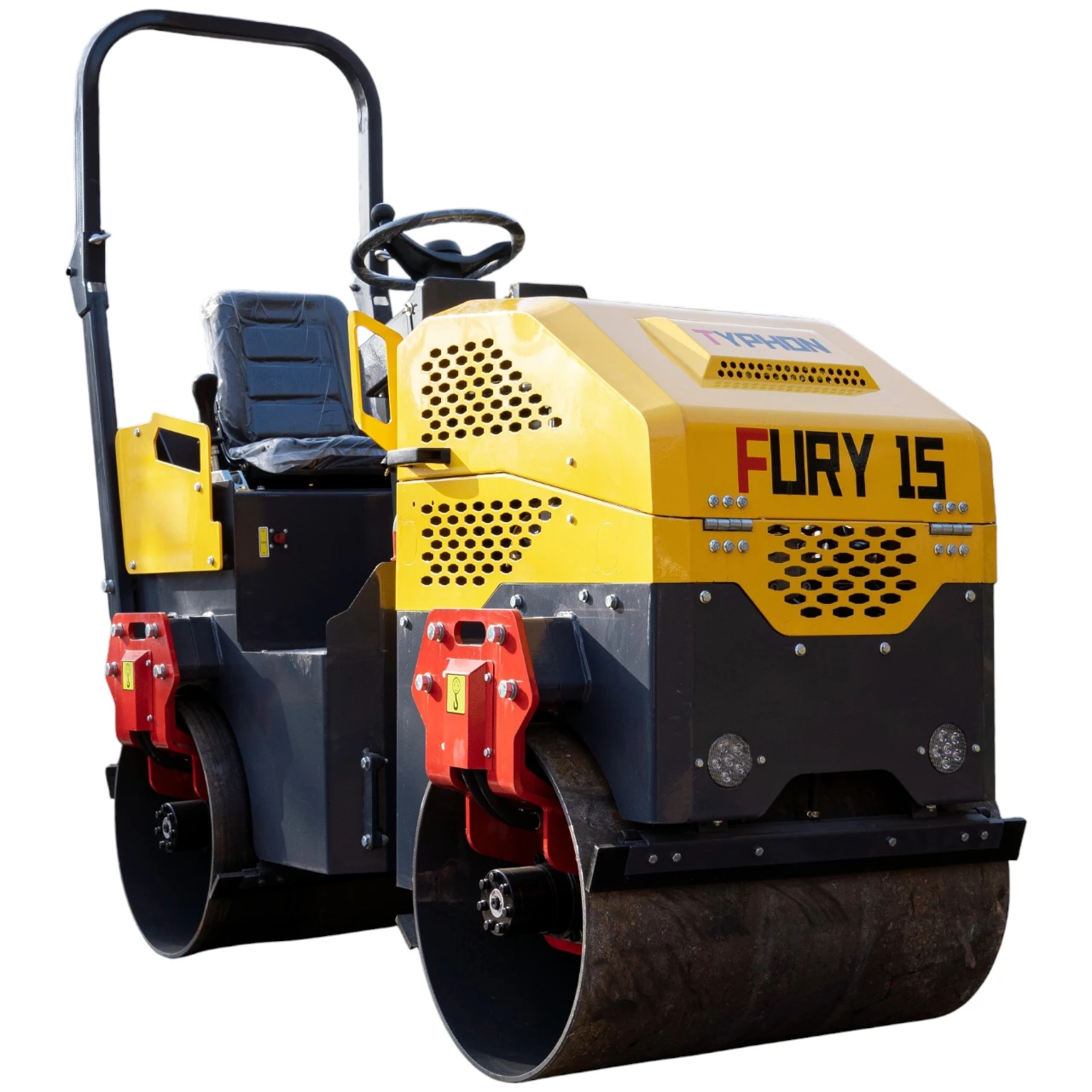

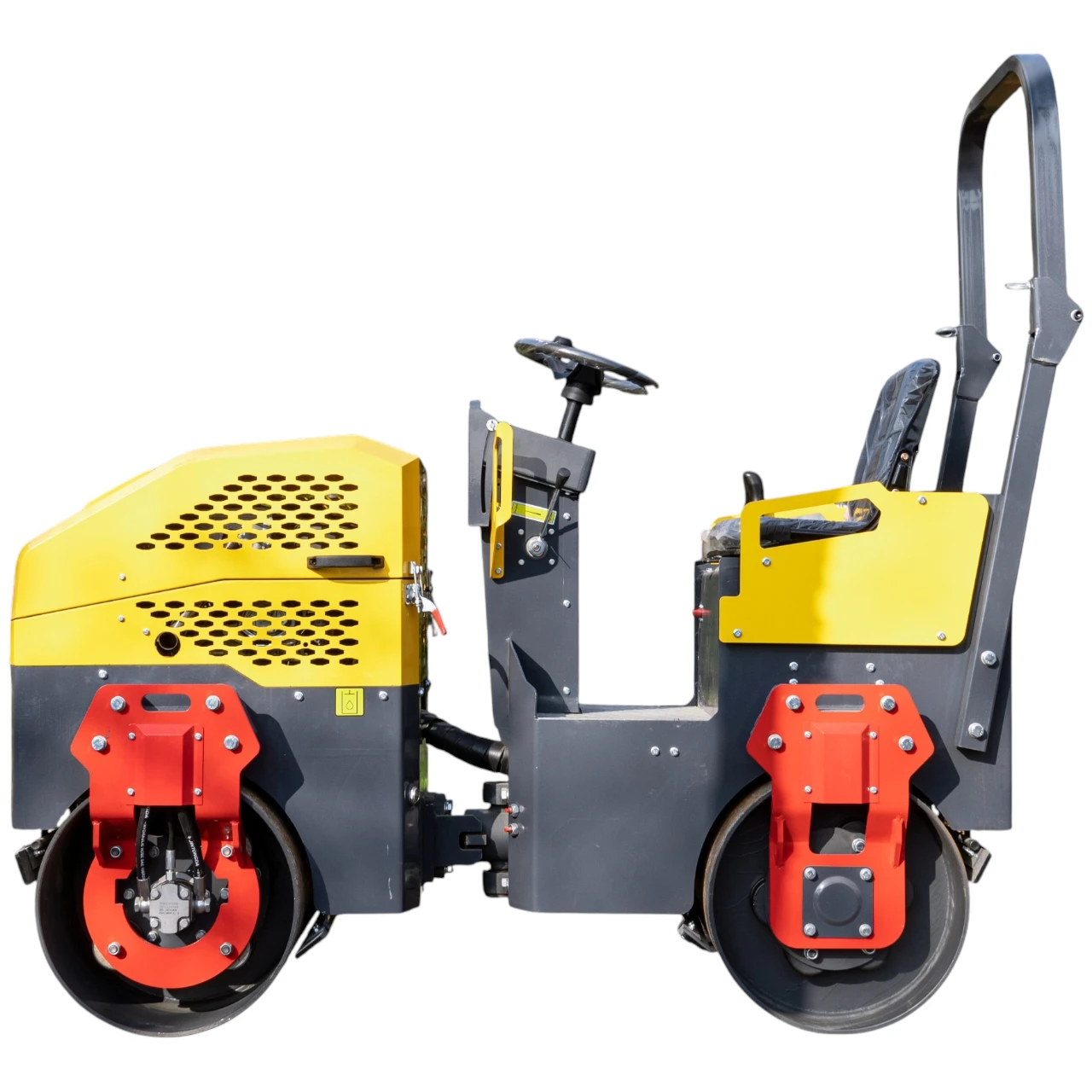

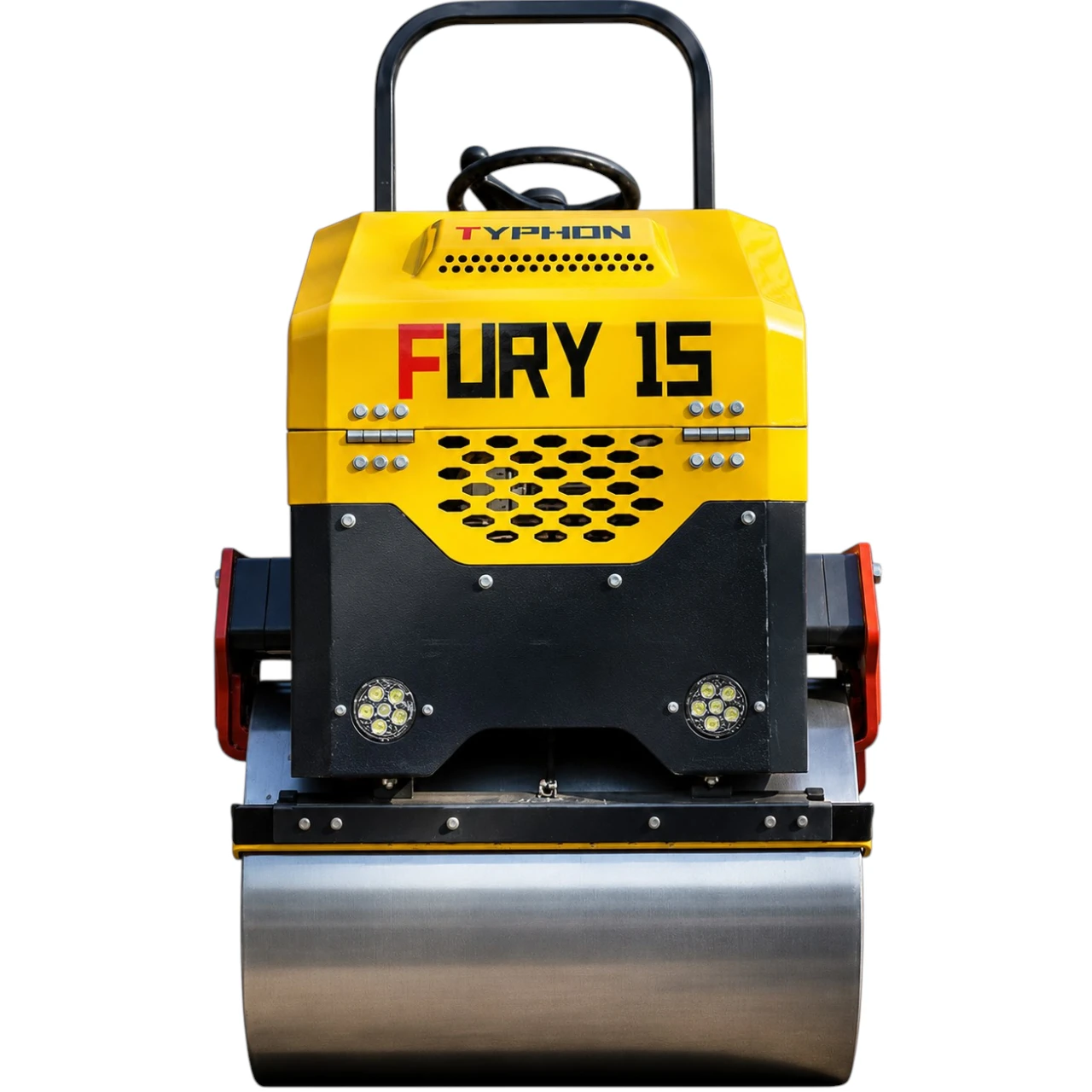

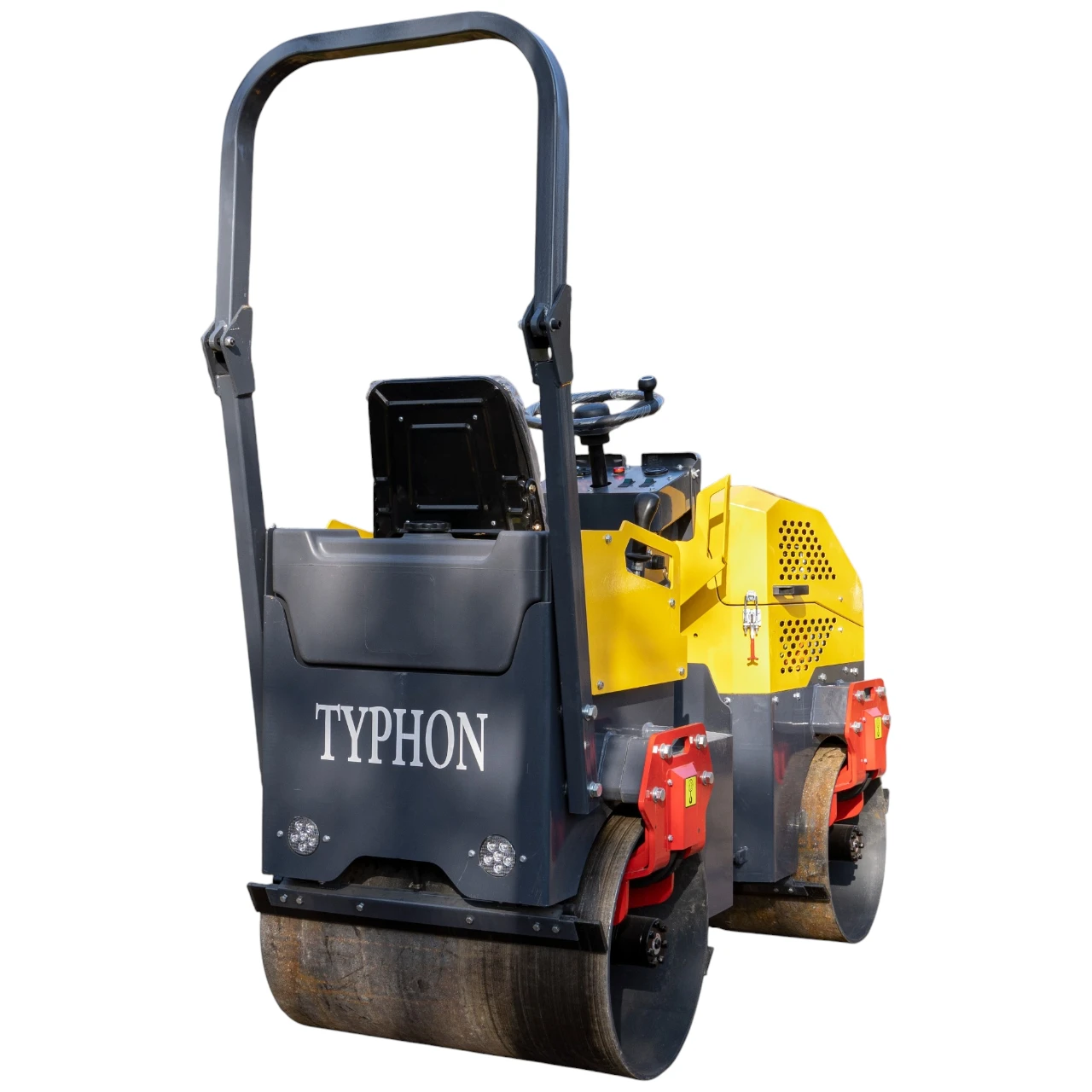

TYPHON FURY 15 Mini Road Roller 1.5Ton 13.5 hp B&S Gas Engine Hydraulic Steering

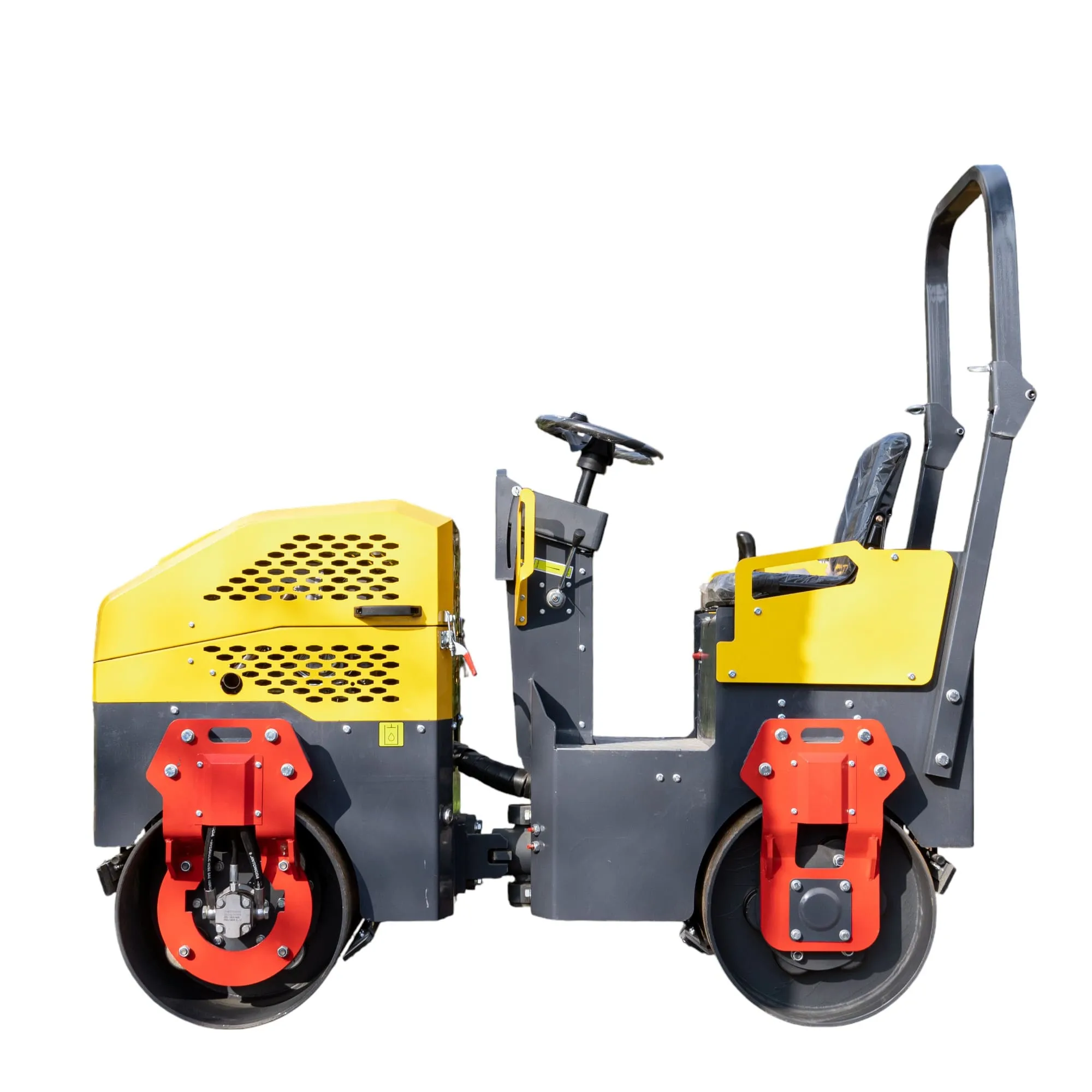

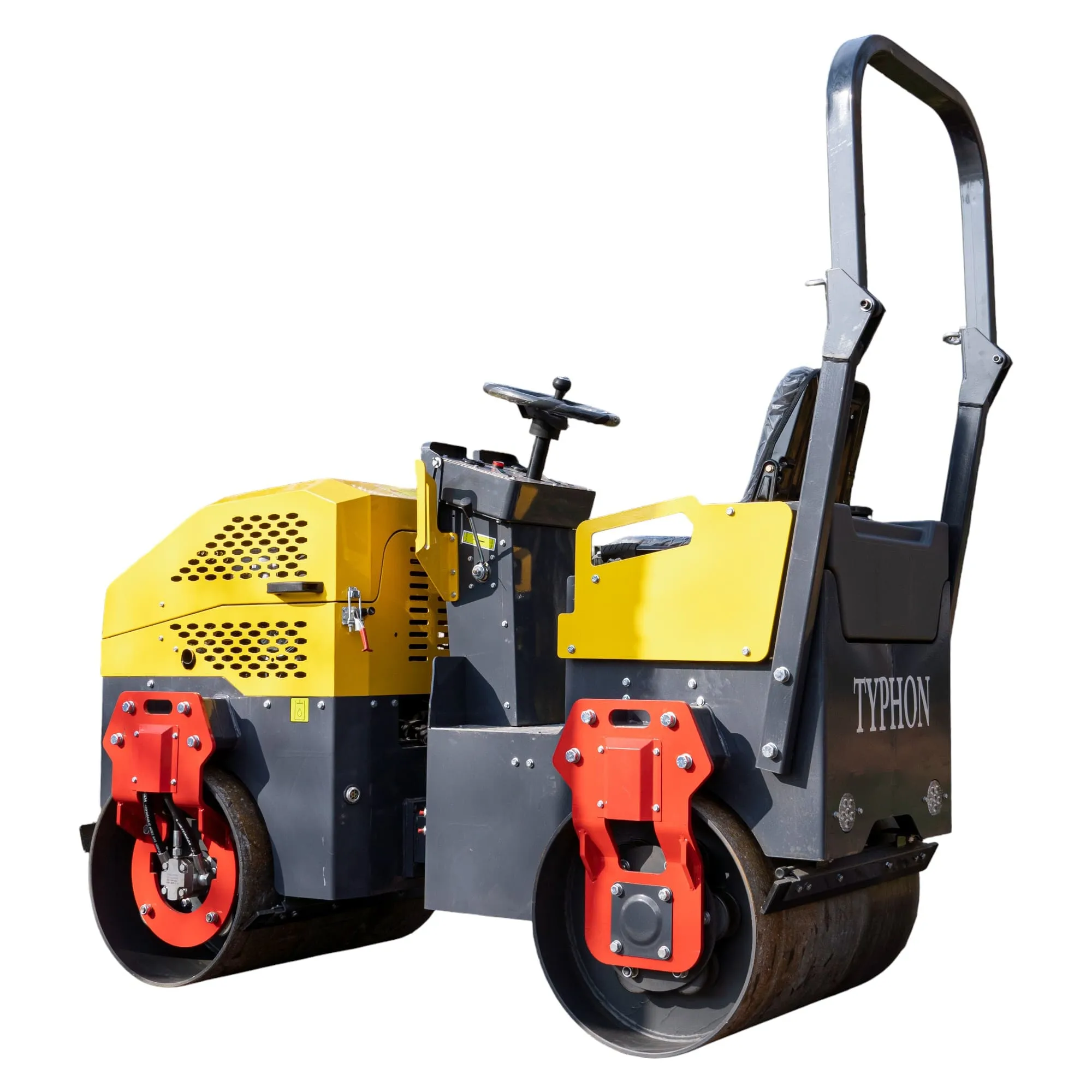

The TYPHON Fury 15 Mini Road Roller is intended for compaction work where a wider drum and a higher listed working weight than the Fury 10 may be appropriate. Its supplied specifications identify 800 mm front and rear drums, a 1,380 kg working weight, hydraulic two-wheel drive, front-wheel hydraulic vibration, and hydraulic steering. A 13.5 HP Briggs & Stratton engine powers the machine.
Key Features

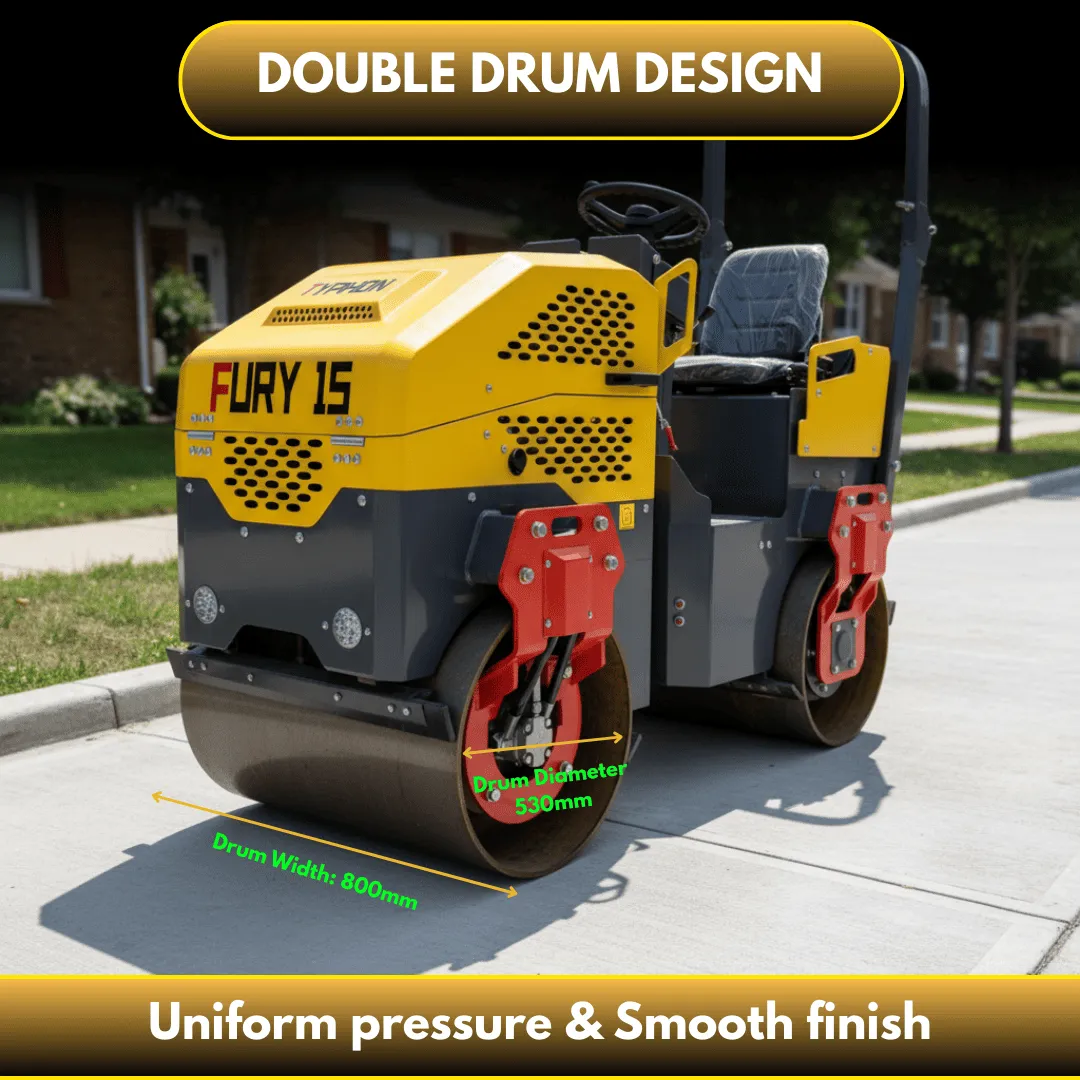

- 800 mm drum width: The front and rear drums are each listed at 800 mm wide, with a 530 mm drum diameter.

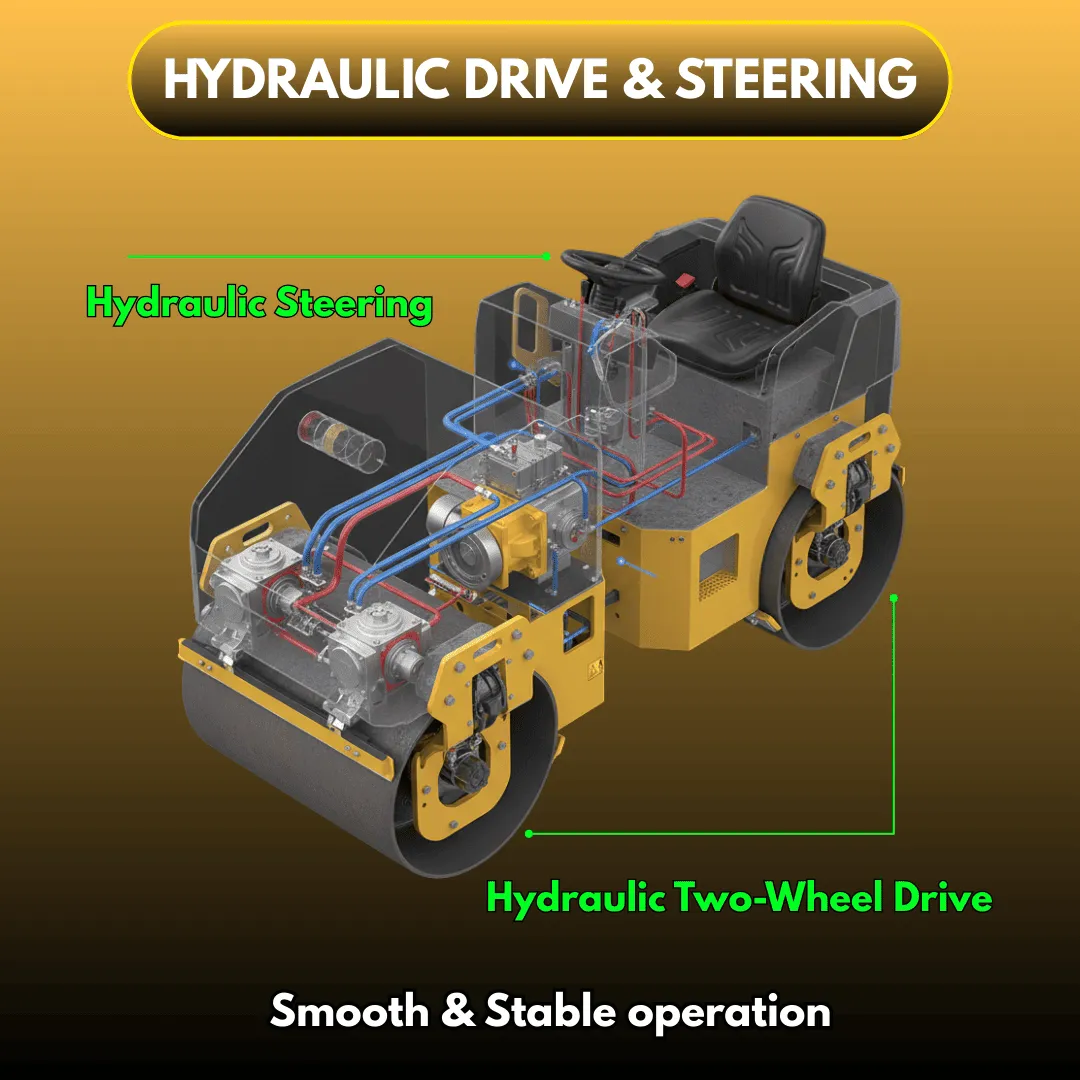

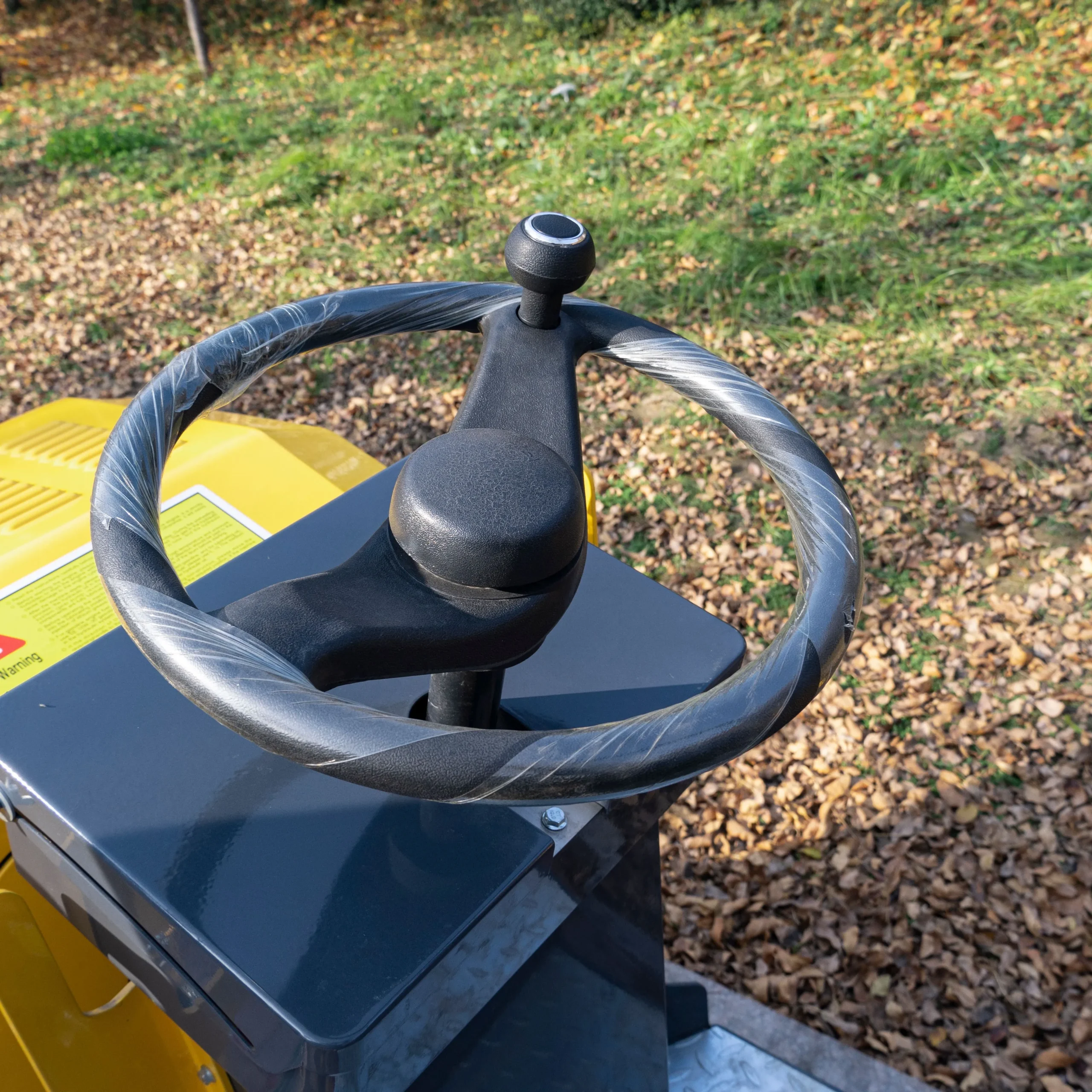

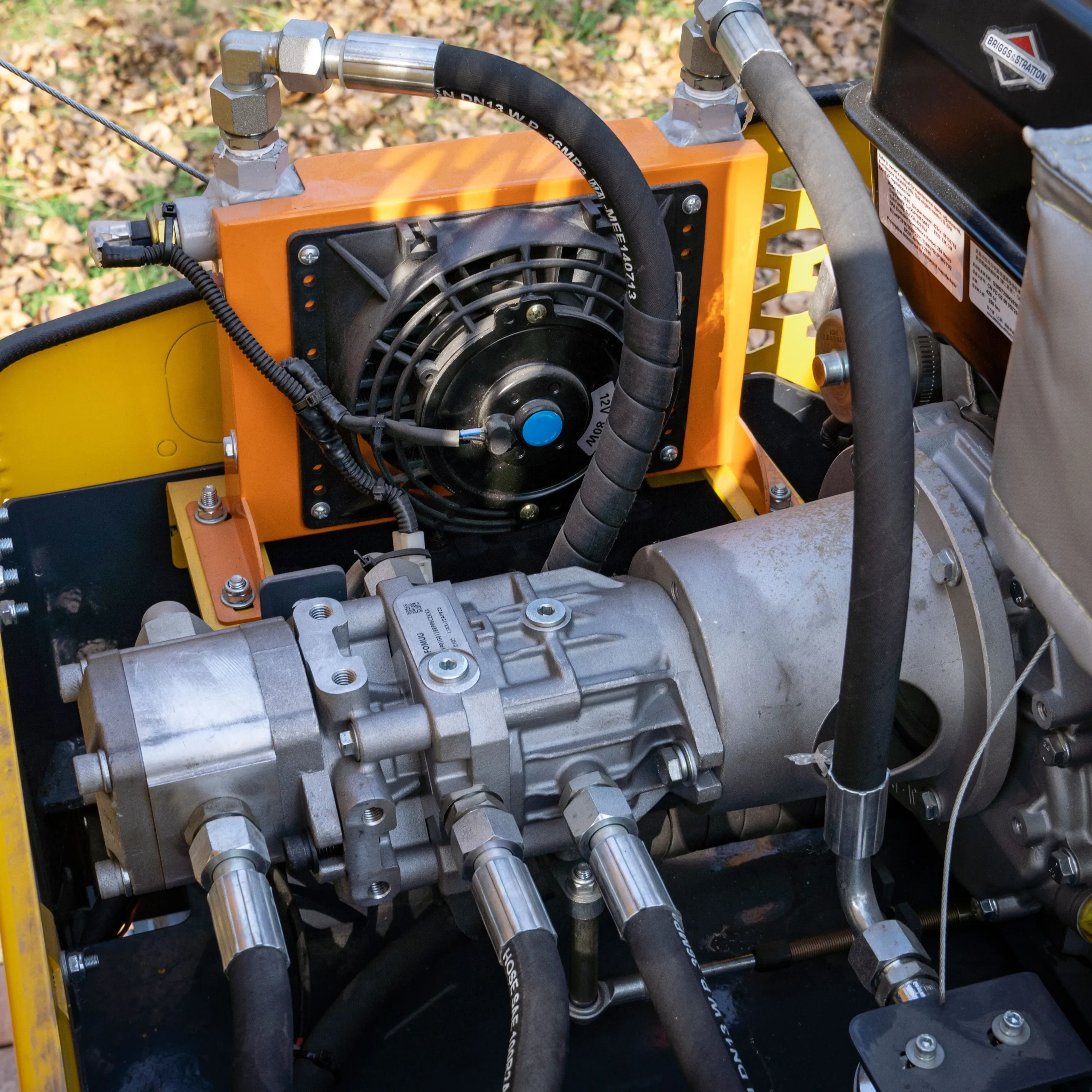

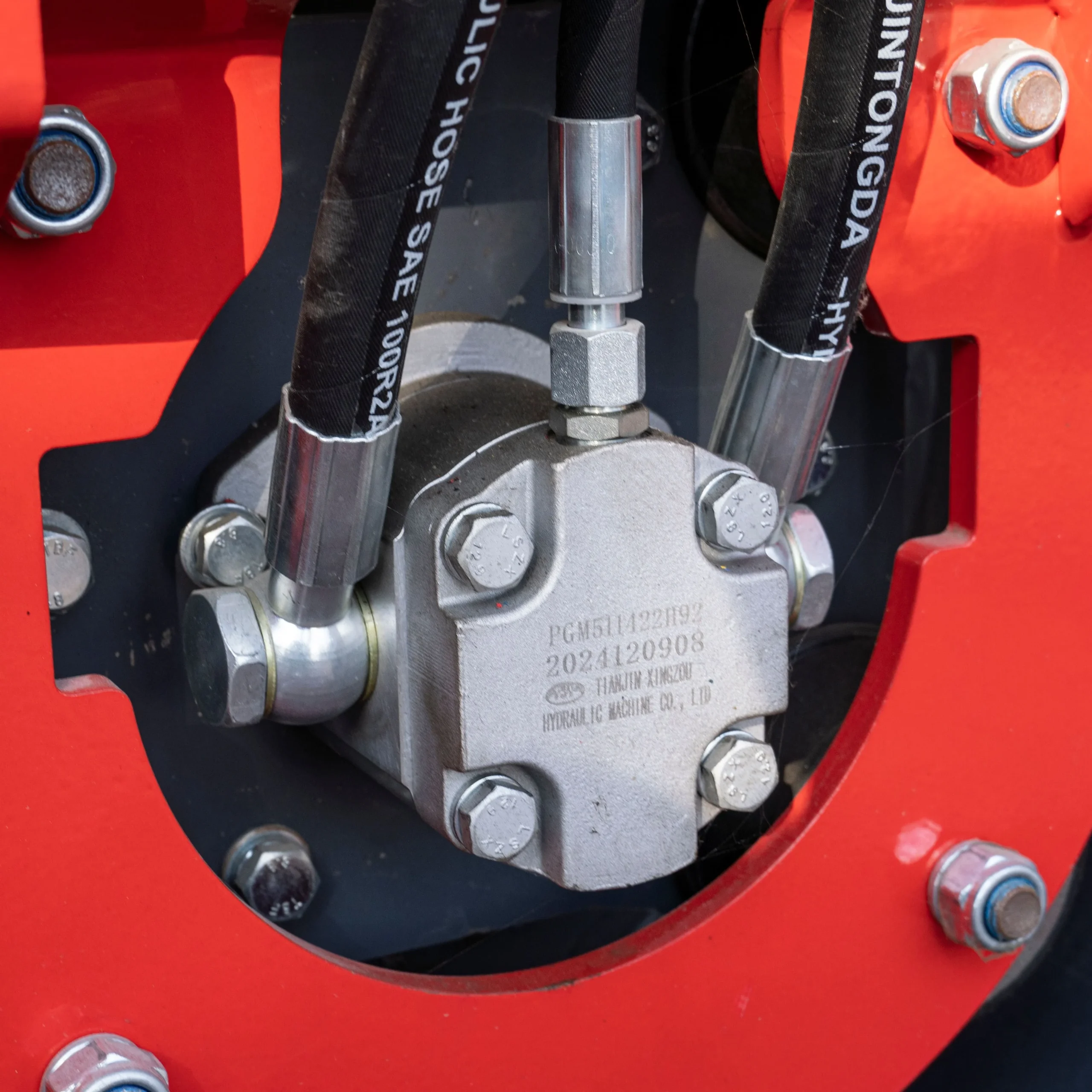

- Hydraulic drive and steering: The machine specification identifies hydraulic two-wheel drive and hydraulic steering for maneuvering during compaction work.

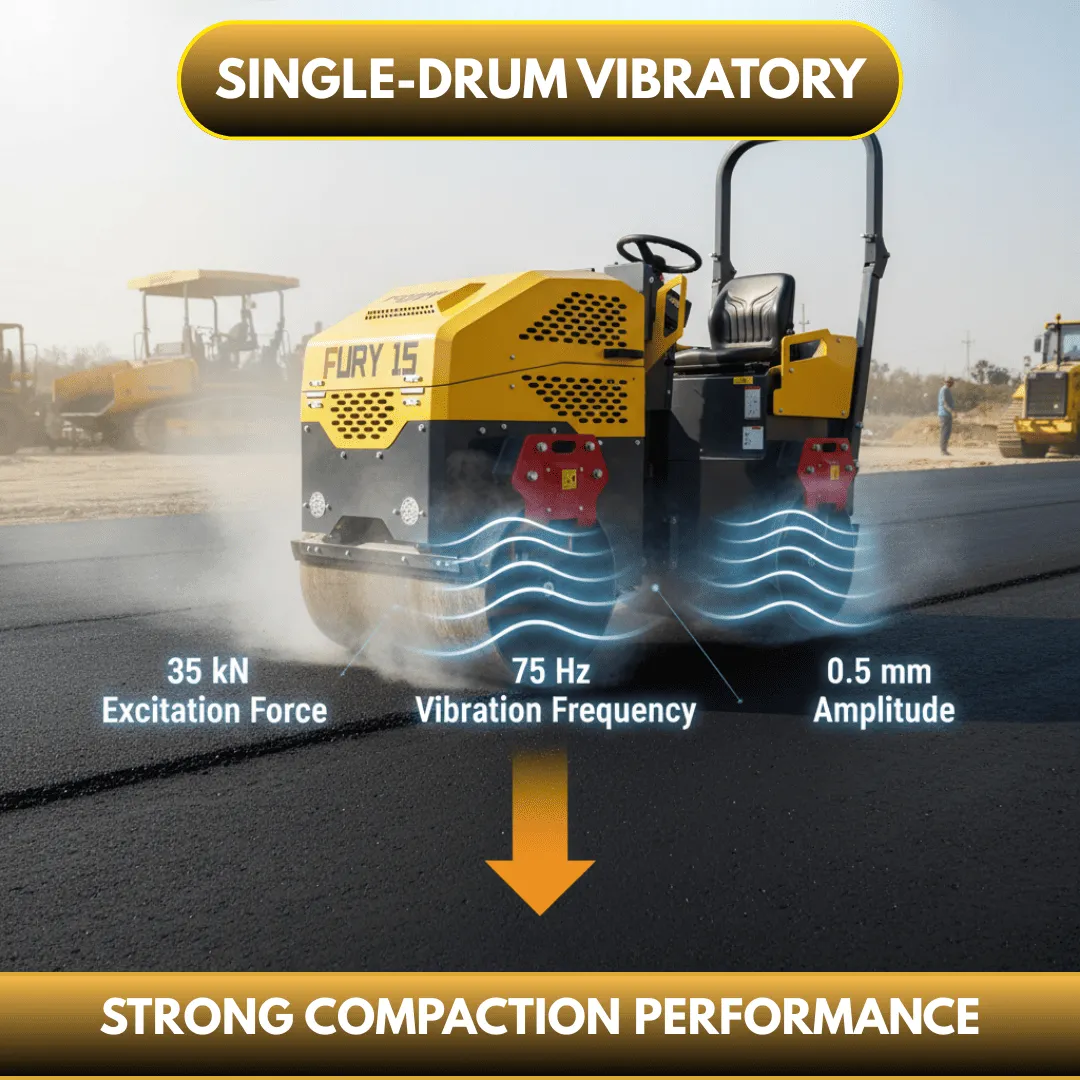

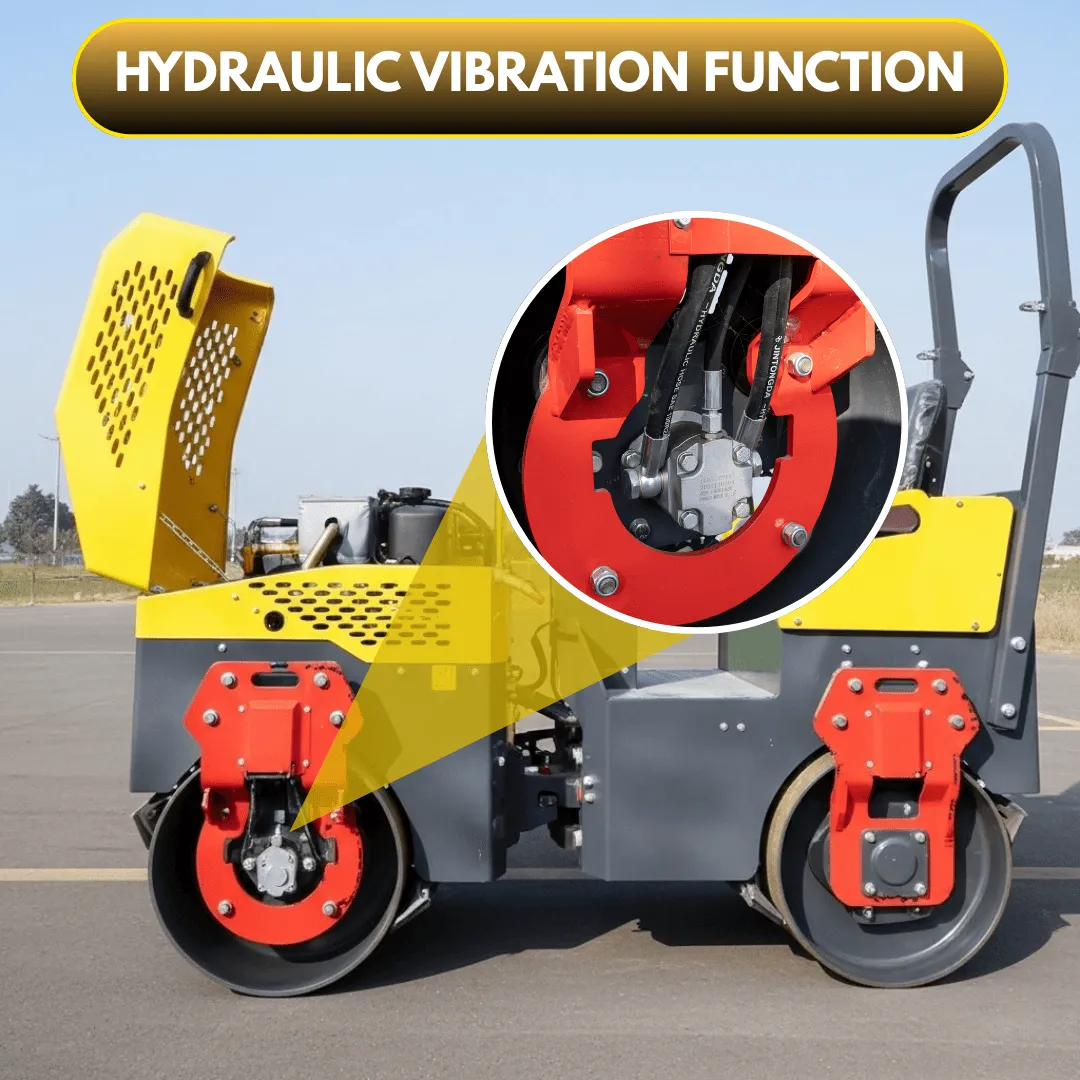

- Front-wheel vibration: The listed vibration system uses hydraulic vibration at the front wheel, with a 75 Hz vibration frequency and 35 kN excitation force.

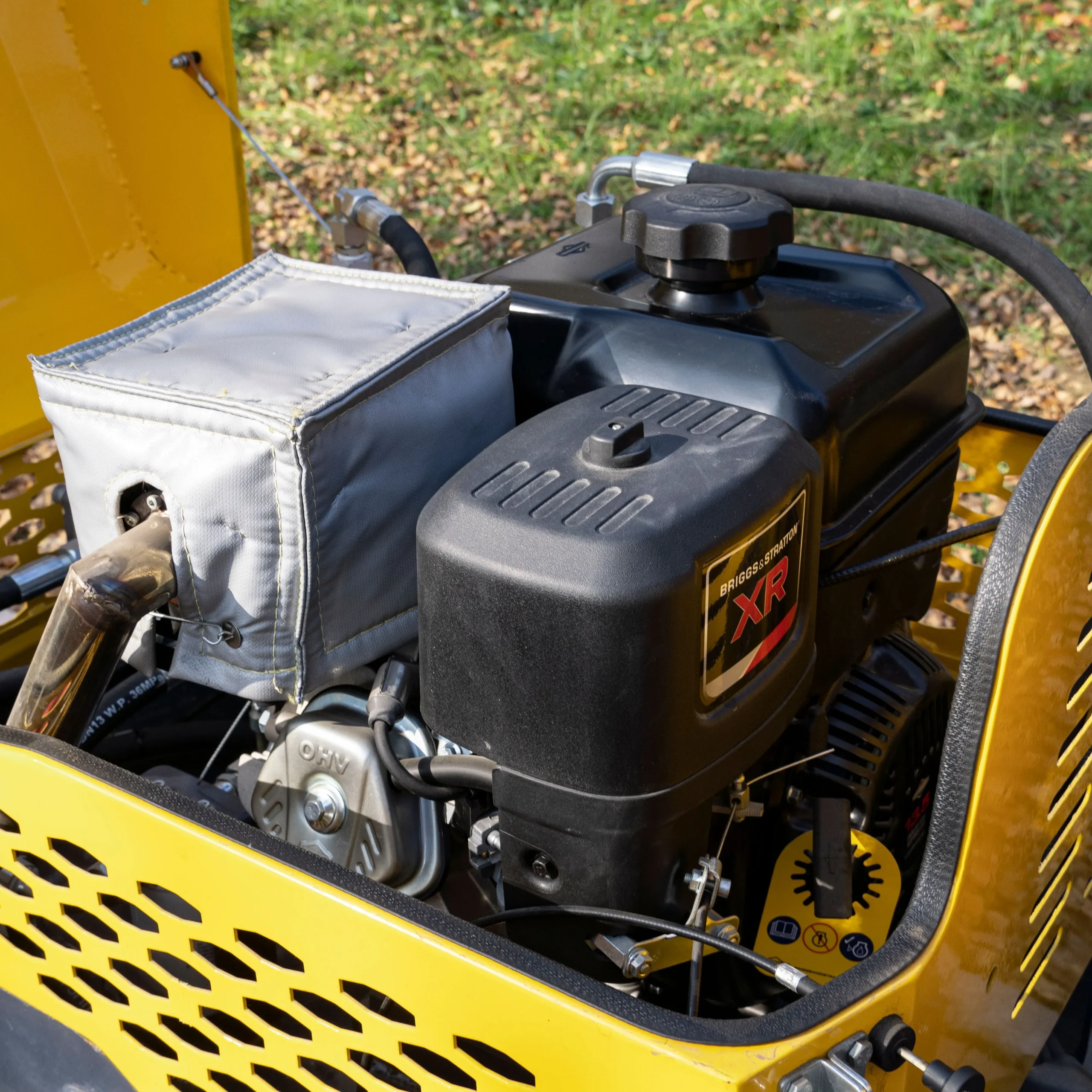

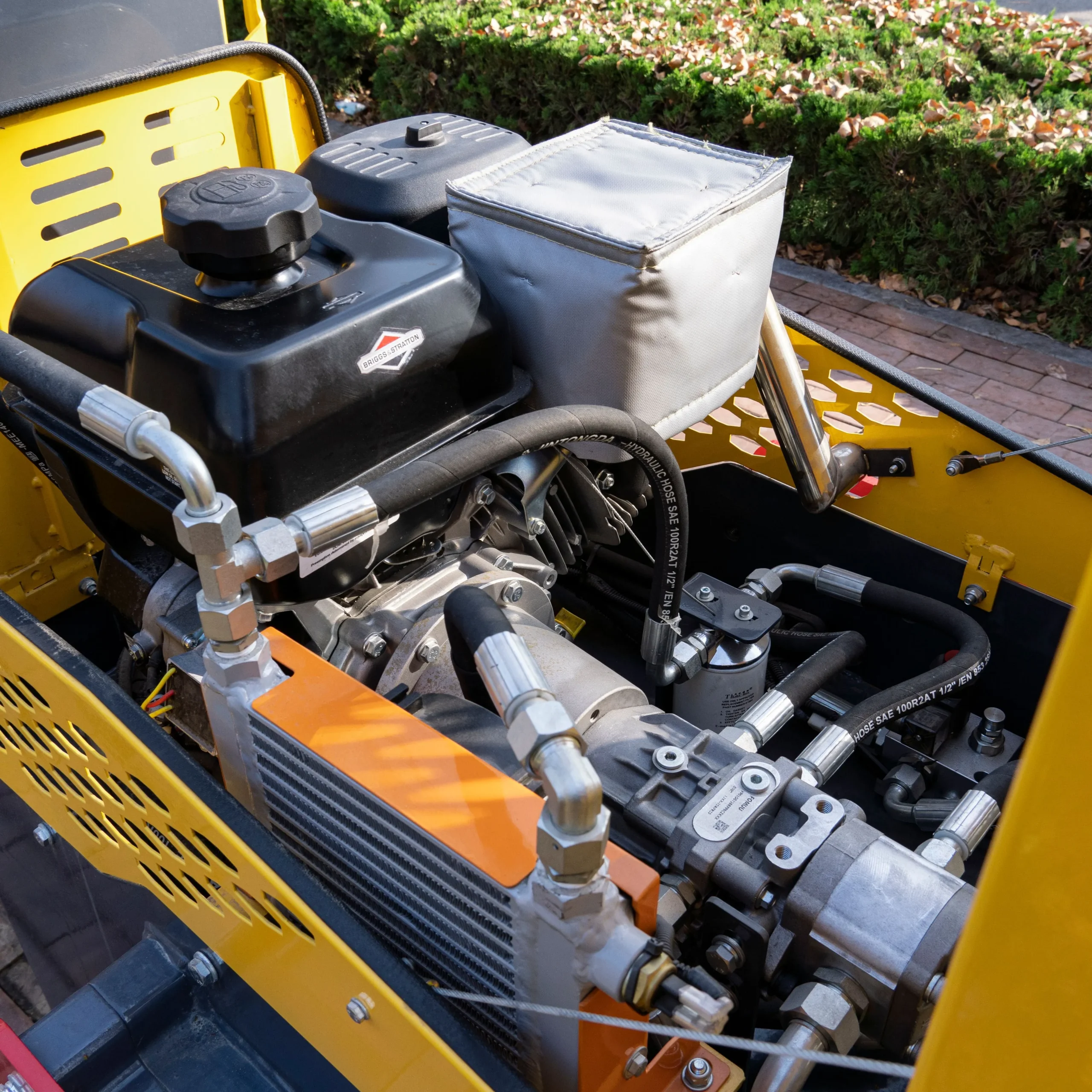

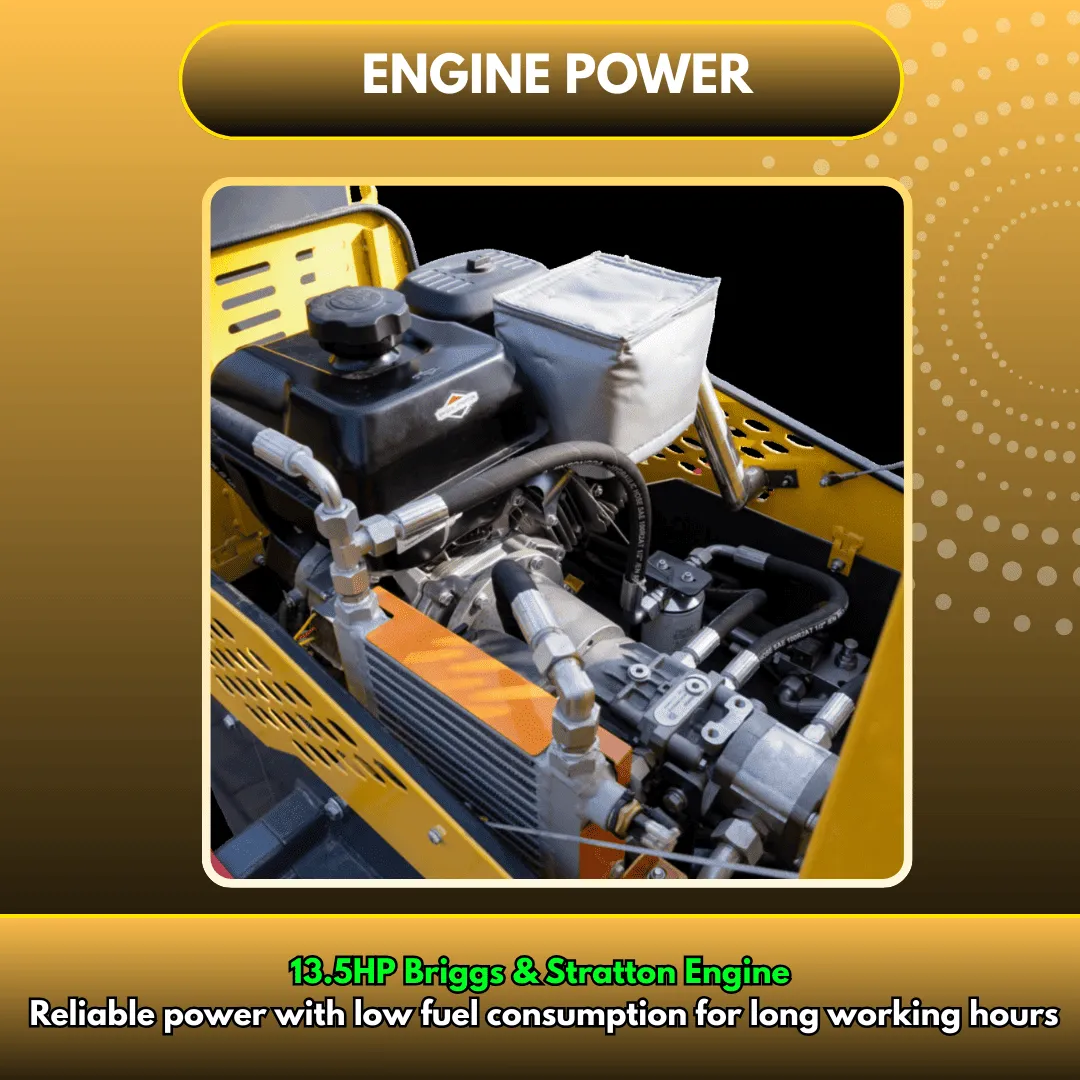

- 13.5 HP gasoline engine: The specification sheet lists a Briggs & Stratton engine, a 5.5 L tank capacity, and fuel consumption of 300 g/kWh.
Suitable Applications

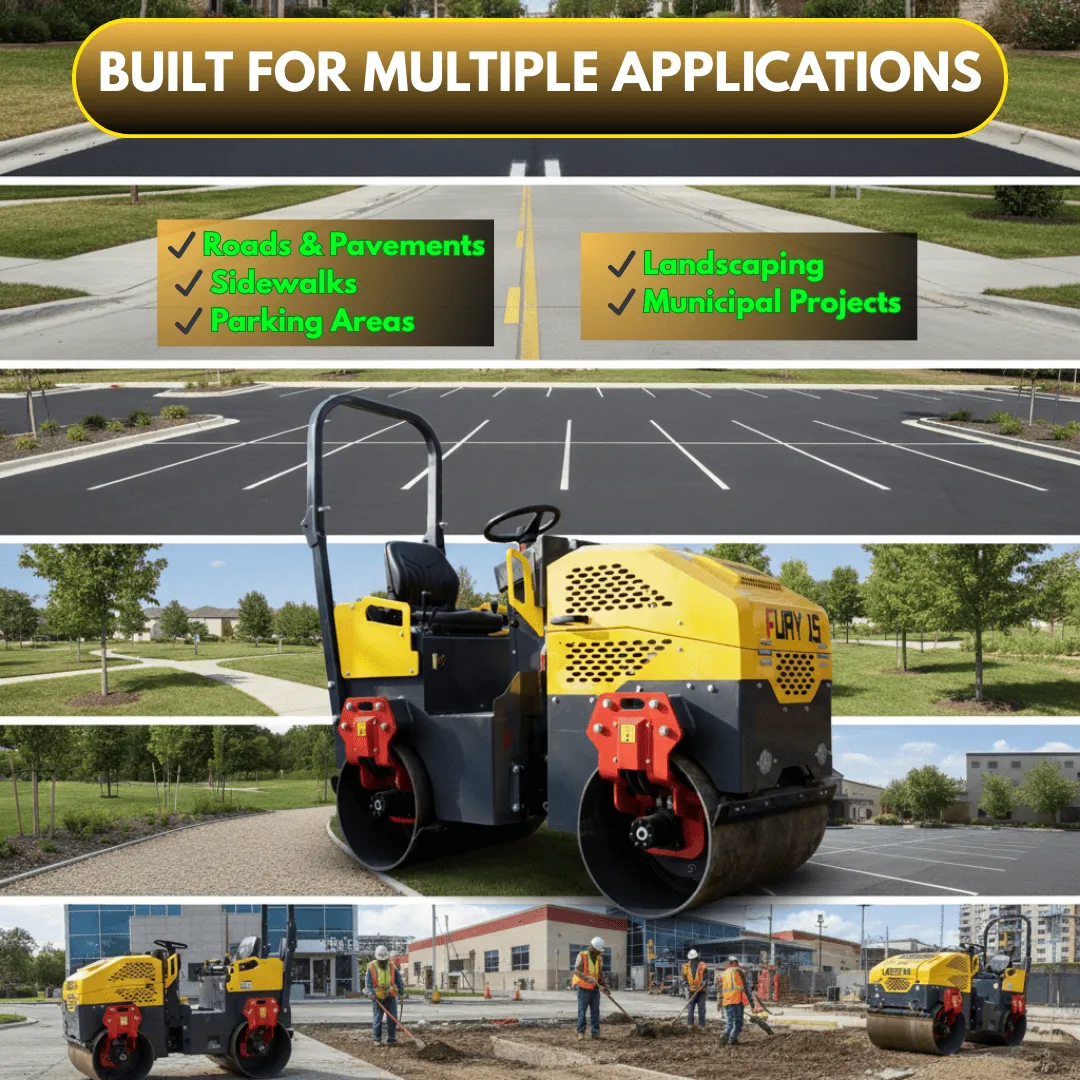

Evaluate the Fury 15 for road maintenance, driveways, parking areas, and other suitable compaction projects where its 800 mm drum width and machine dimensions fit the work area. Confirm surface requirements and site access before operation.
Technical Specifications
| Specification | US Value | Metric Value |
|---|---|---|
| Travel speed | 0–4.97 mph | 0–8 km/h |

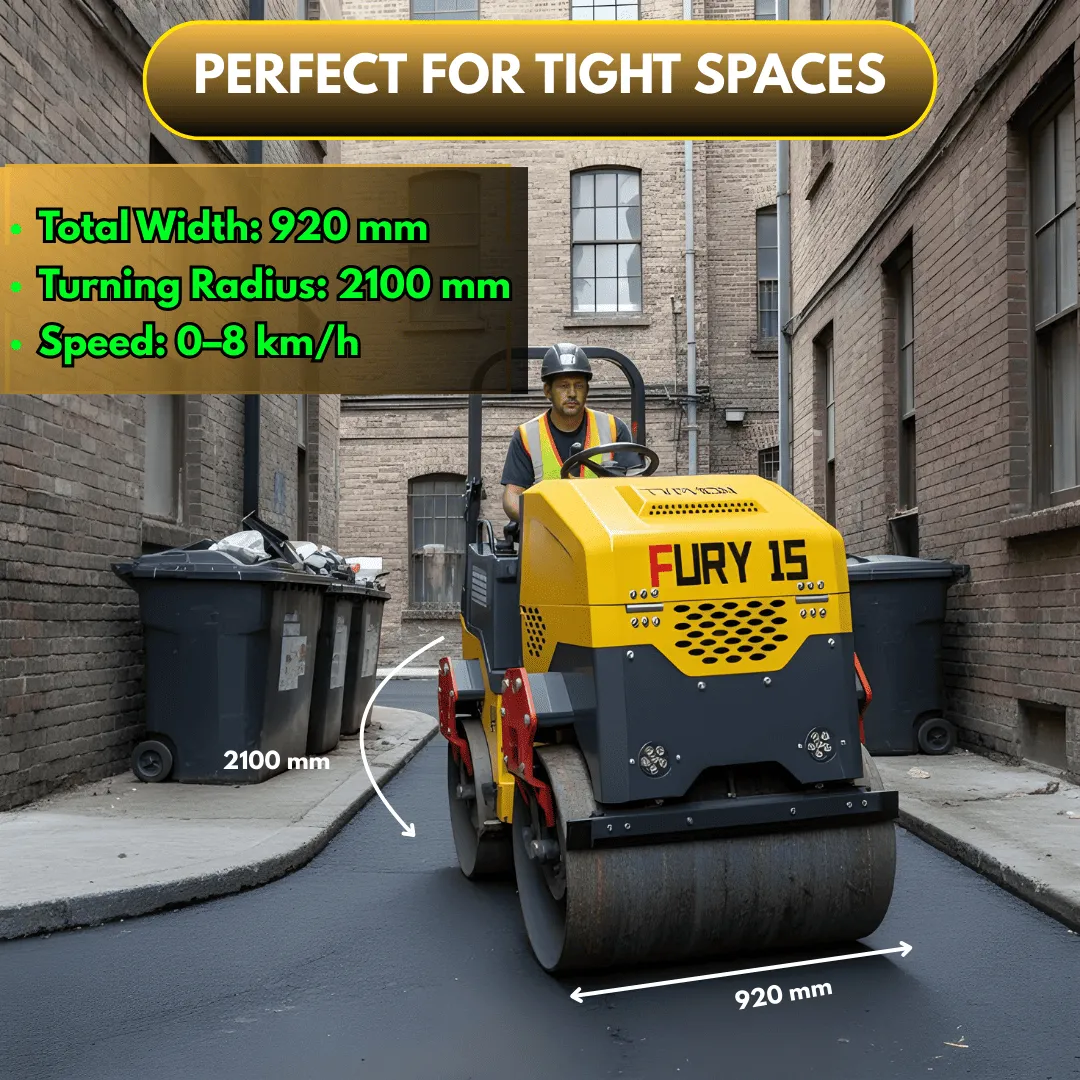

| Turning radius | 6.89 ft | 2,100 mm |
| Climbing ability | 0.3 | 0.3 |
| Engine model | Briggs & Stratton | Briggs & Stratton |
| Engine power | 13.5 HP | 13.5 HP |
| Tank capacity | 1.45 US gal | 5.5 L |
| Fuel consumption | 300 g/kWh | 300 g/kW·h |
| Compaction force* | 83 / 72 N/cm | 83 / 72 N/cm |
| Nominal amplitude | 0.0197 in | 0.5 mm |
| Vibration frequency | 75 Hz | 75 Hz |
| Excitation force | 7,868 lbf | 35 kN |

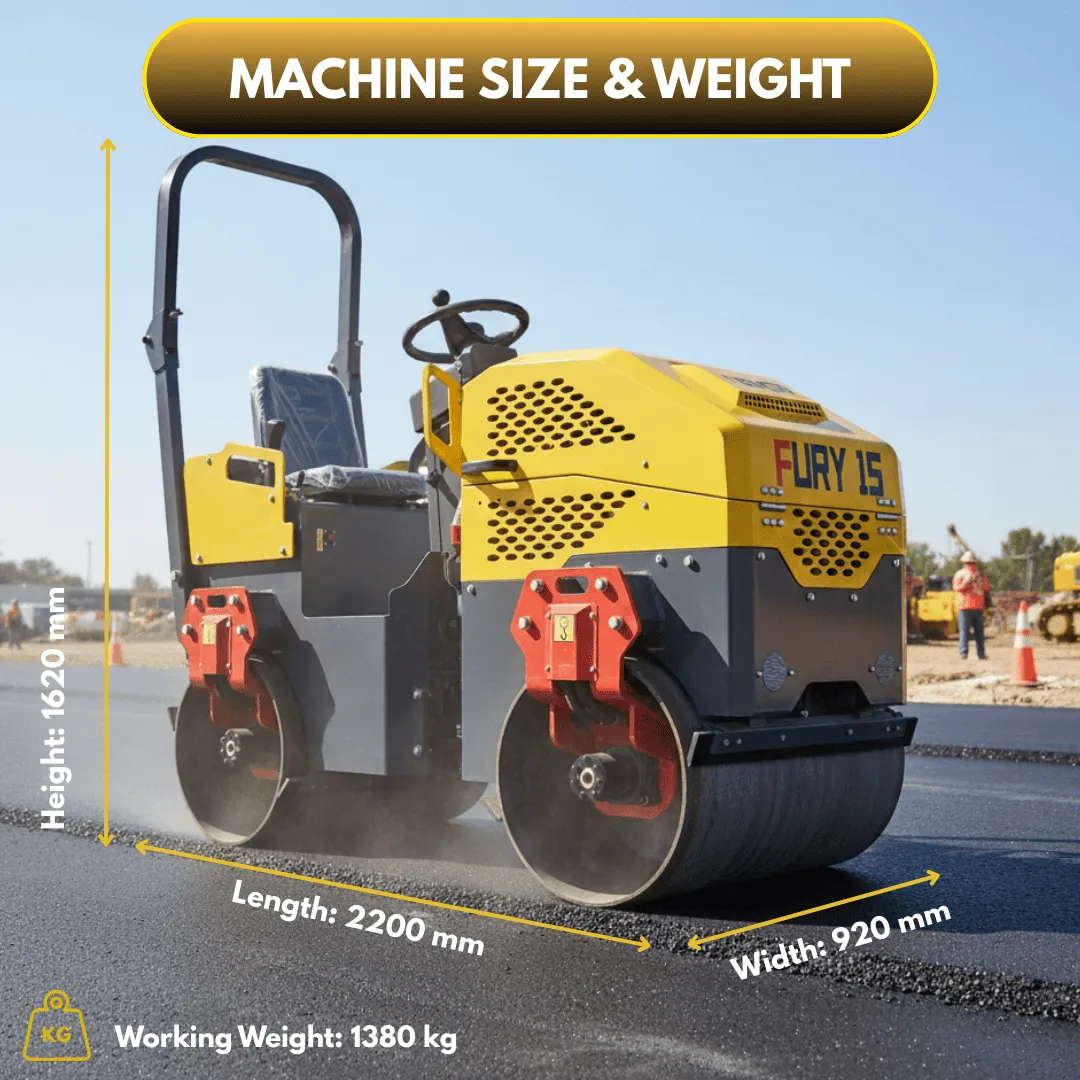

| Working weight | 3,042 lbs | 1,380 kg |
| Drum width (front, rear) | 31.50 in | 800 mm |
| Drum diameter (front, rear) | 20.87 in | 530 mm |
| Overall length | 7.22 ft (86.61 in) | 2,200 mm |
| Total width | 3.02 ft (36.22 in) | 920 mm |
| Total height (excluding impact beam) | 5.31 ft (63.78 in) | 1,620 mm |
| Export packaging size | 7.55 × 3.28 × 5.41 ft | 2,300 × 1,000 × 1,650 mm |
| Drive | Hydraulic two-wheel drive | Hydraulic two-wheel drive |
| Vibration | Hydraulic vibration | Hydraulic vibration |
| Vibration mode | Front-wheel vibration | Front-wheel vibration |

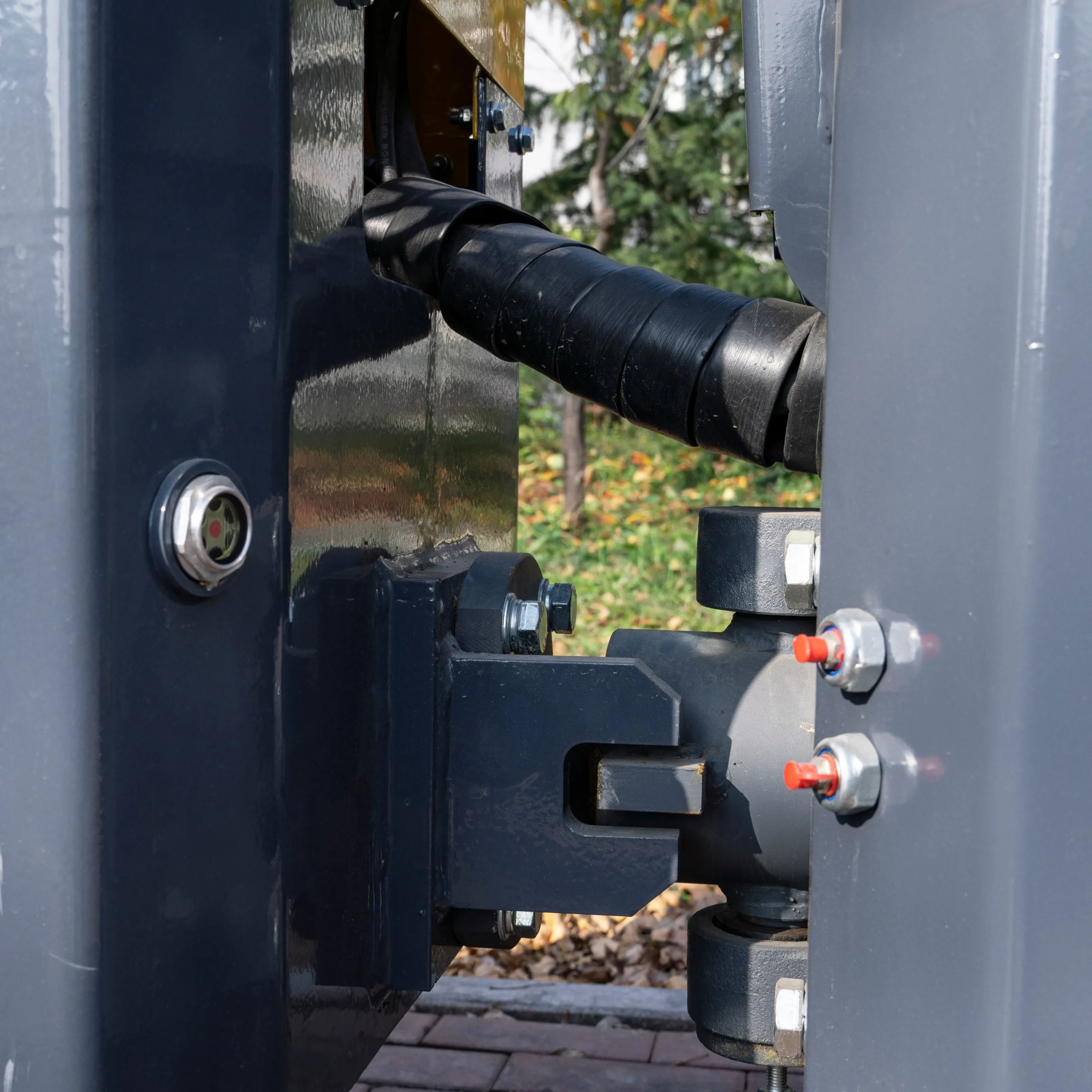

| Steering | Hydraulic steering | Hydraulic steering |

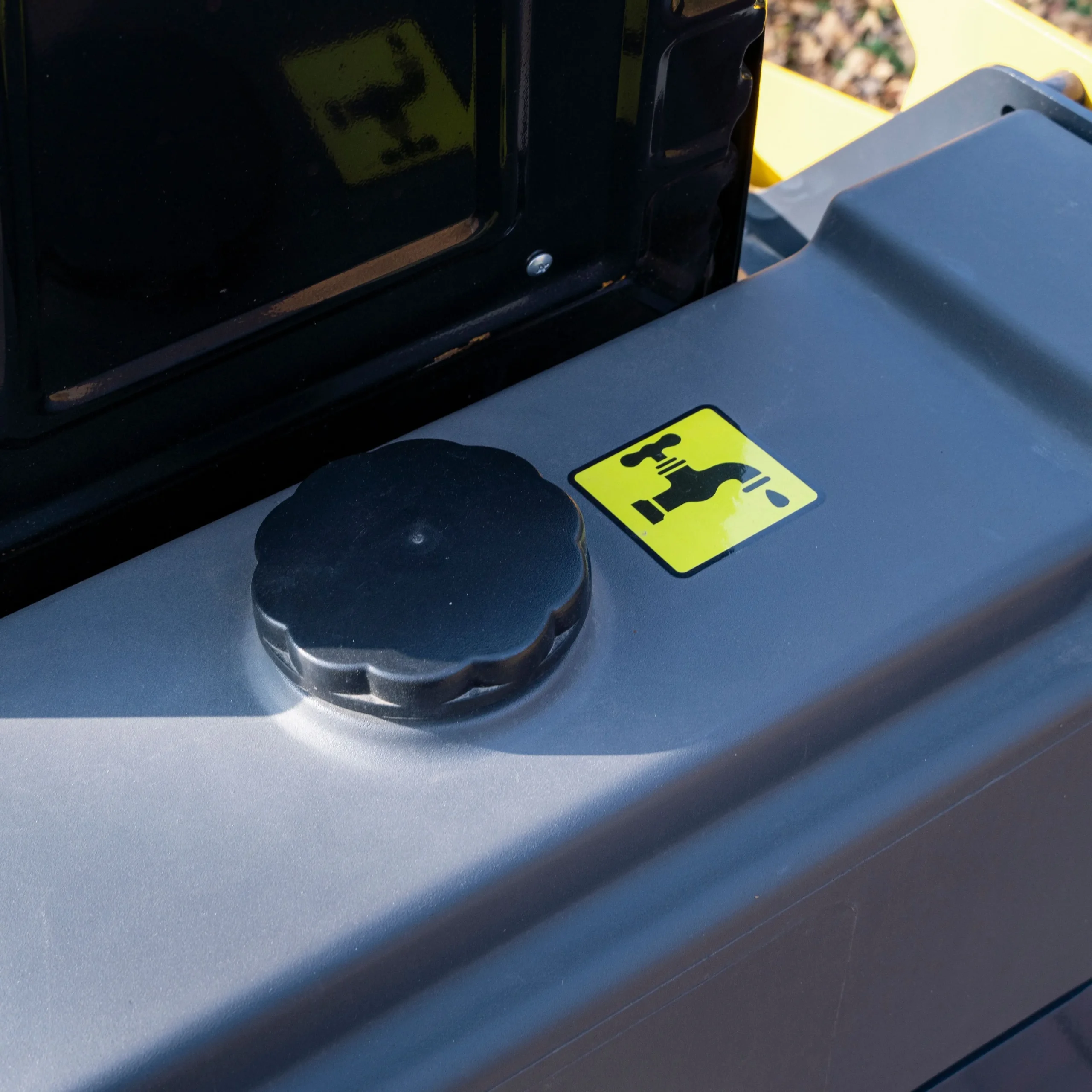

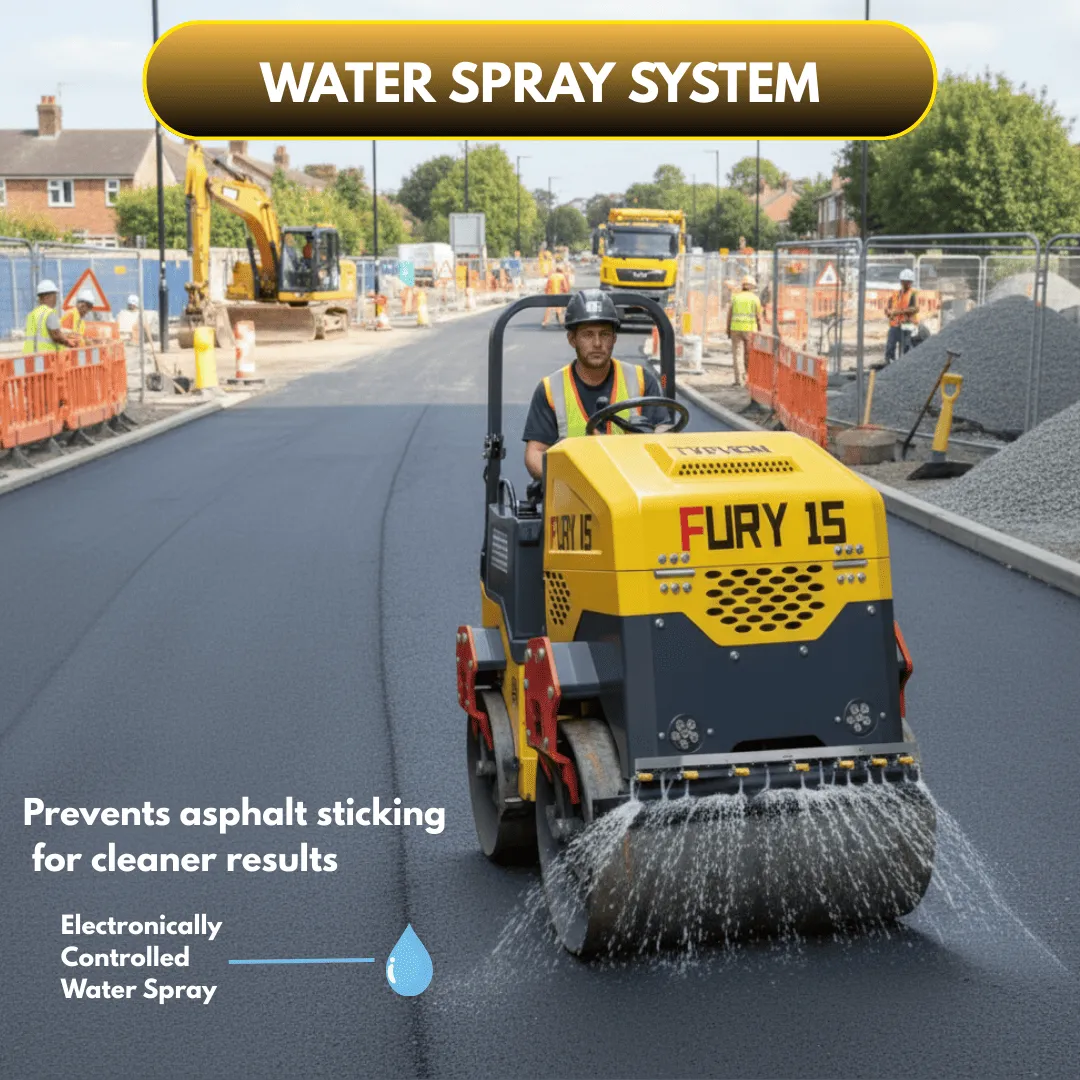

| Sprinkler method | Electronically controlled pressure water spray | Electronically controlled pressure water spray |
Specifications are based on the supplied product information. Confirm technical values and configuration with the manufacturer before purchase.
Choosing the Right Road Roller
Before choosing this model, compare the drum width, 1,380 kg working weight, turning radius, and vibration configuration with the job’s surface and access requirements. Use the manufacturer’s instructions for safe operation and maintenance.
Frequently Asked Questions
What is the working weight of the TYPHON Fury 15?
The supplied specifications list a working weight of 1,380 kg (3,042 lbs).
How wide are the drums?
The front and rear drums are each listed as 800 mm (31.50 inches) wide.
Which engine is specified?
The supplied sheet lists a 13.5 HP Briggs & Stratton engine.
What type of vibration system does it use?
The specification sheet lists hydraulic vibration with front-wheel vibration mode.
