Description

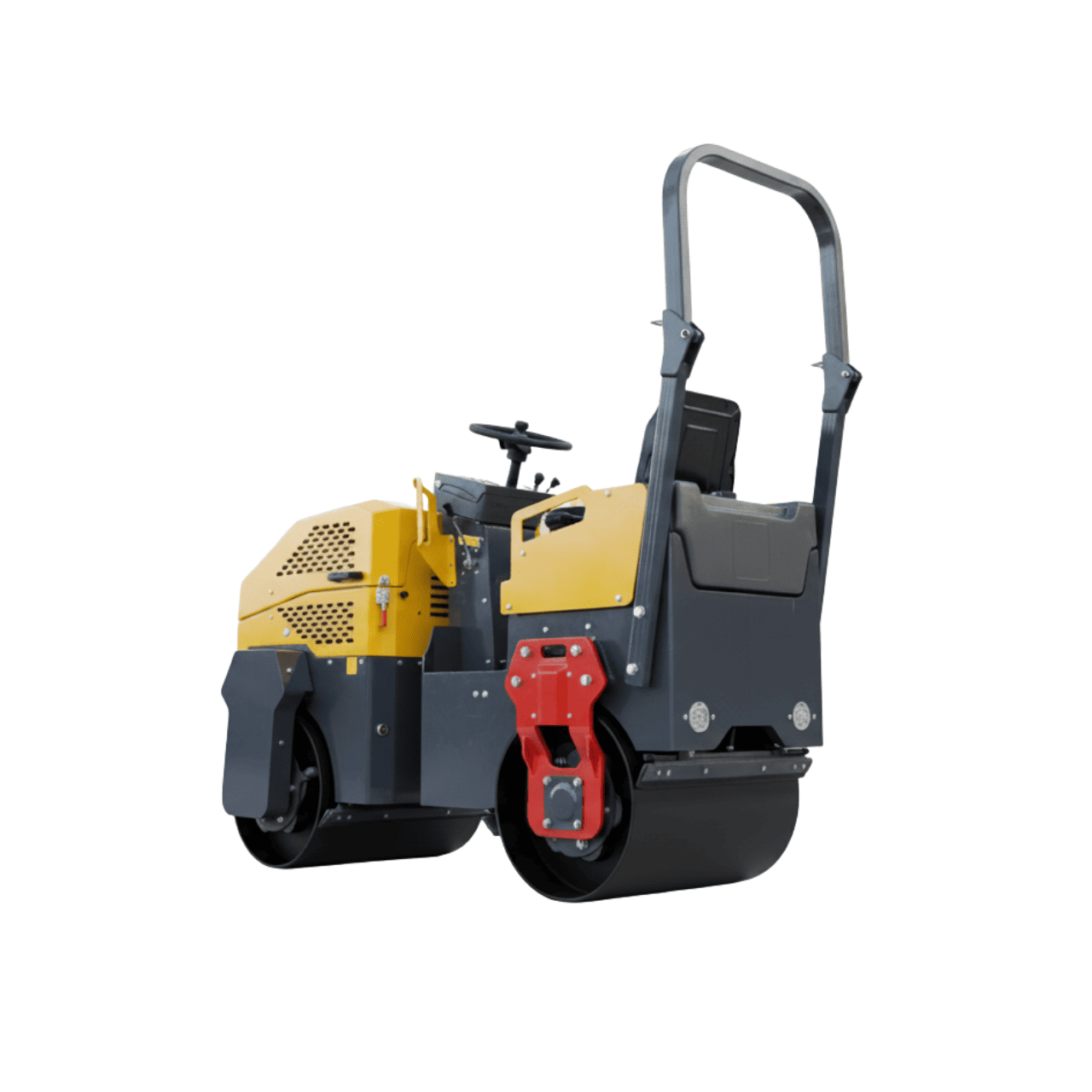

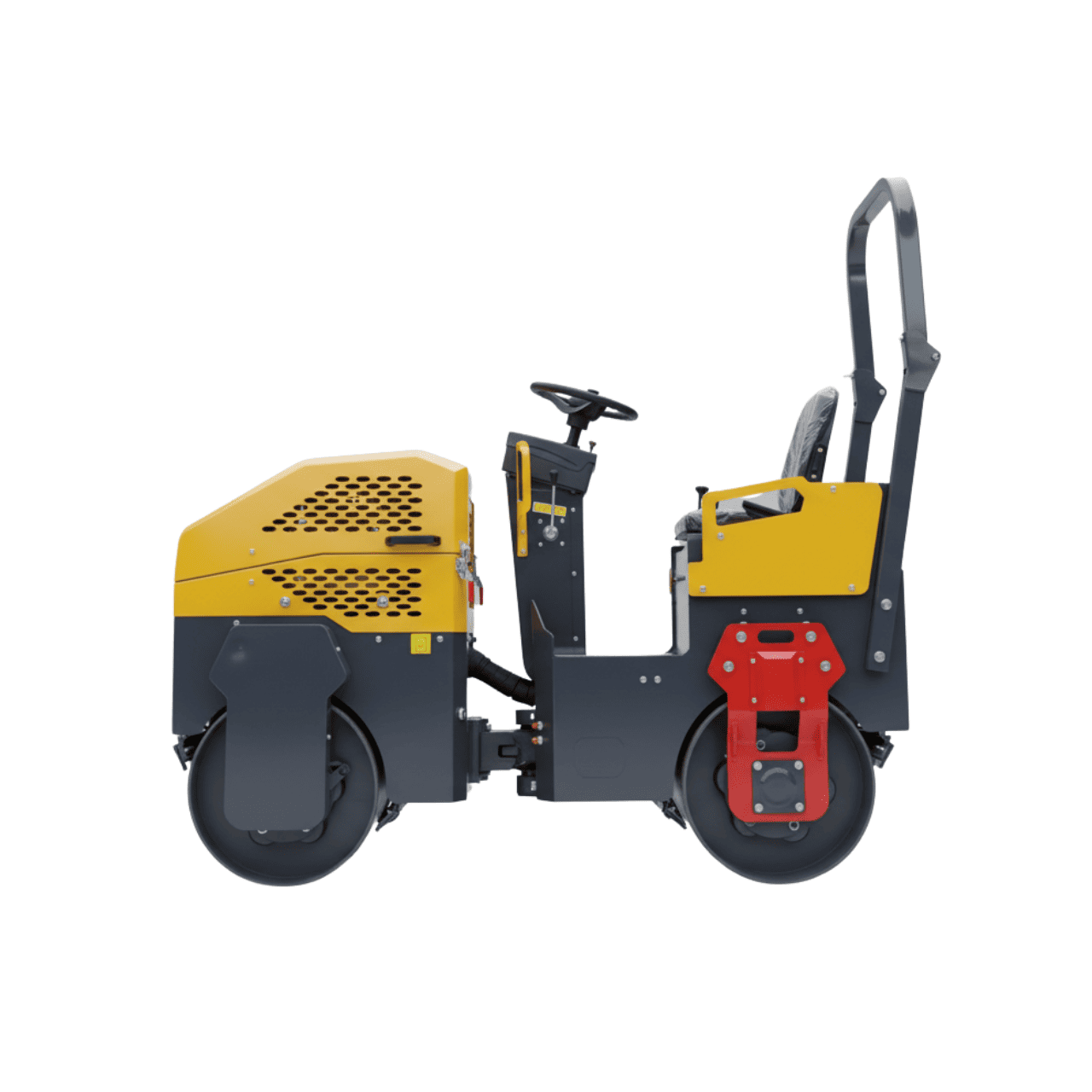

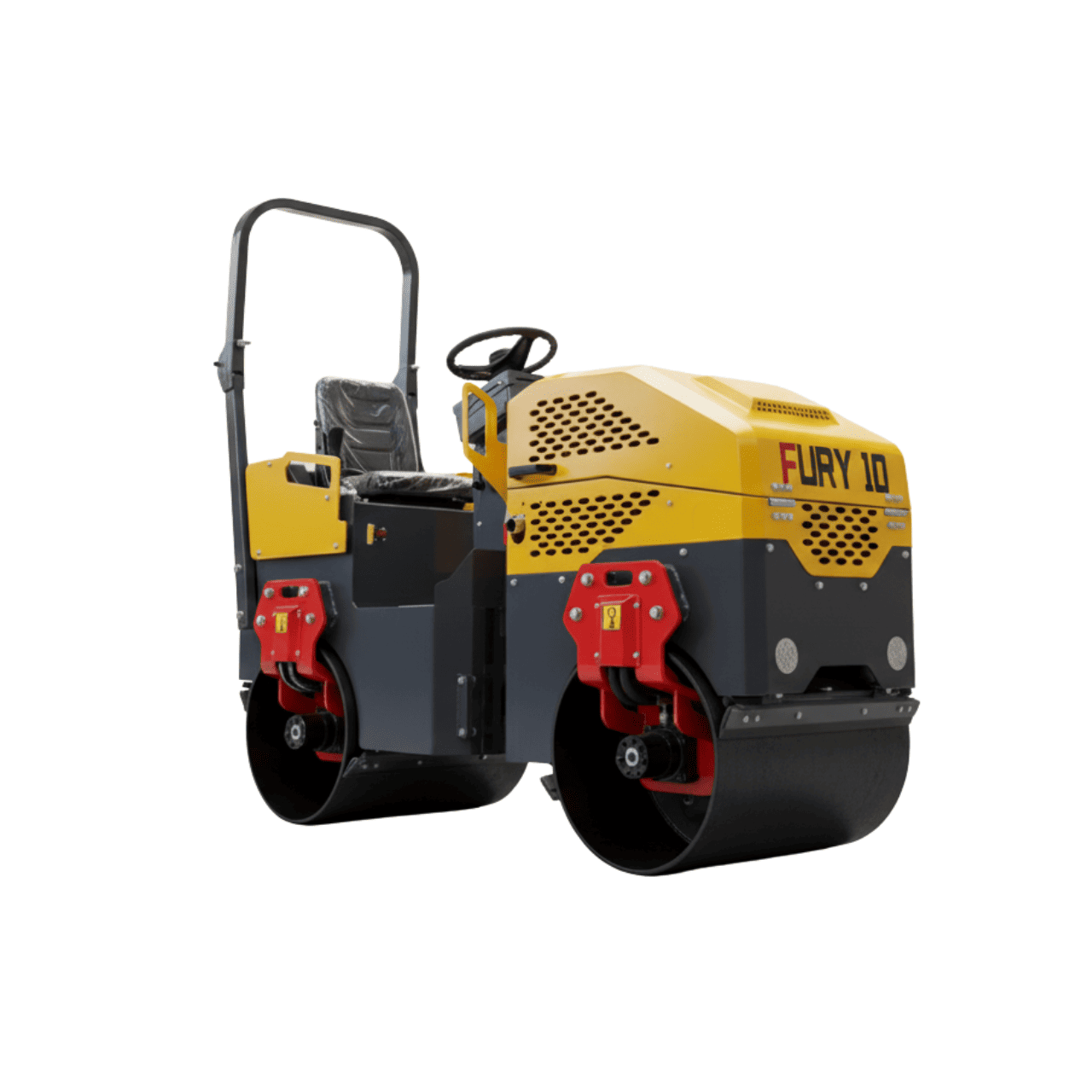

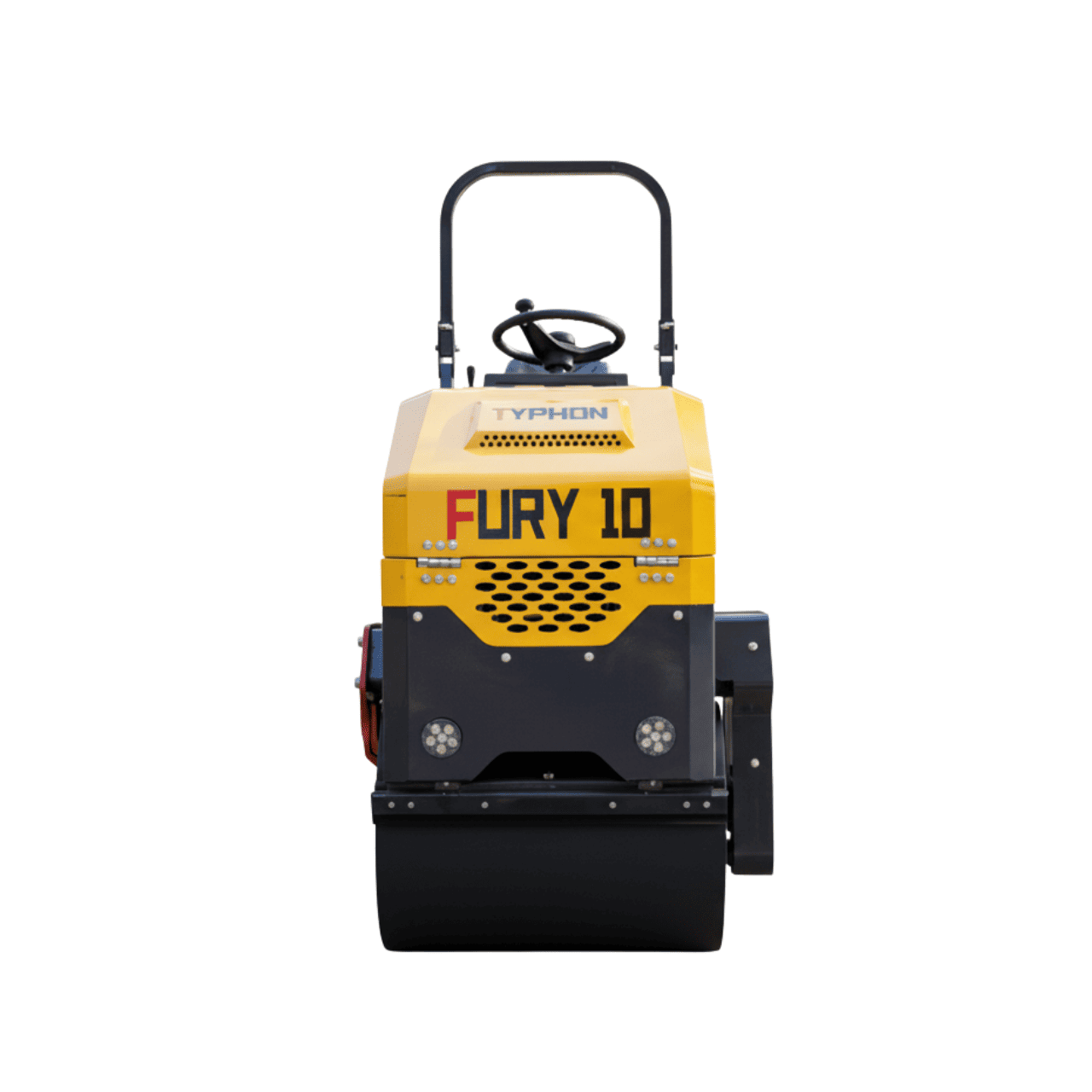

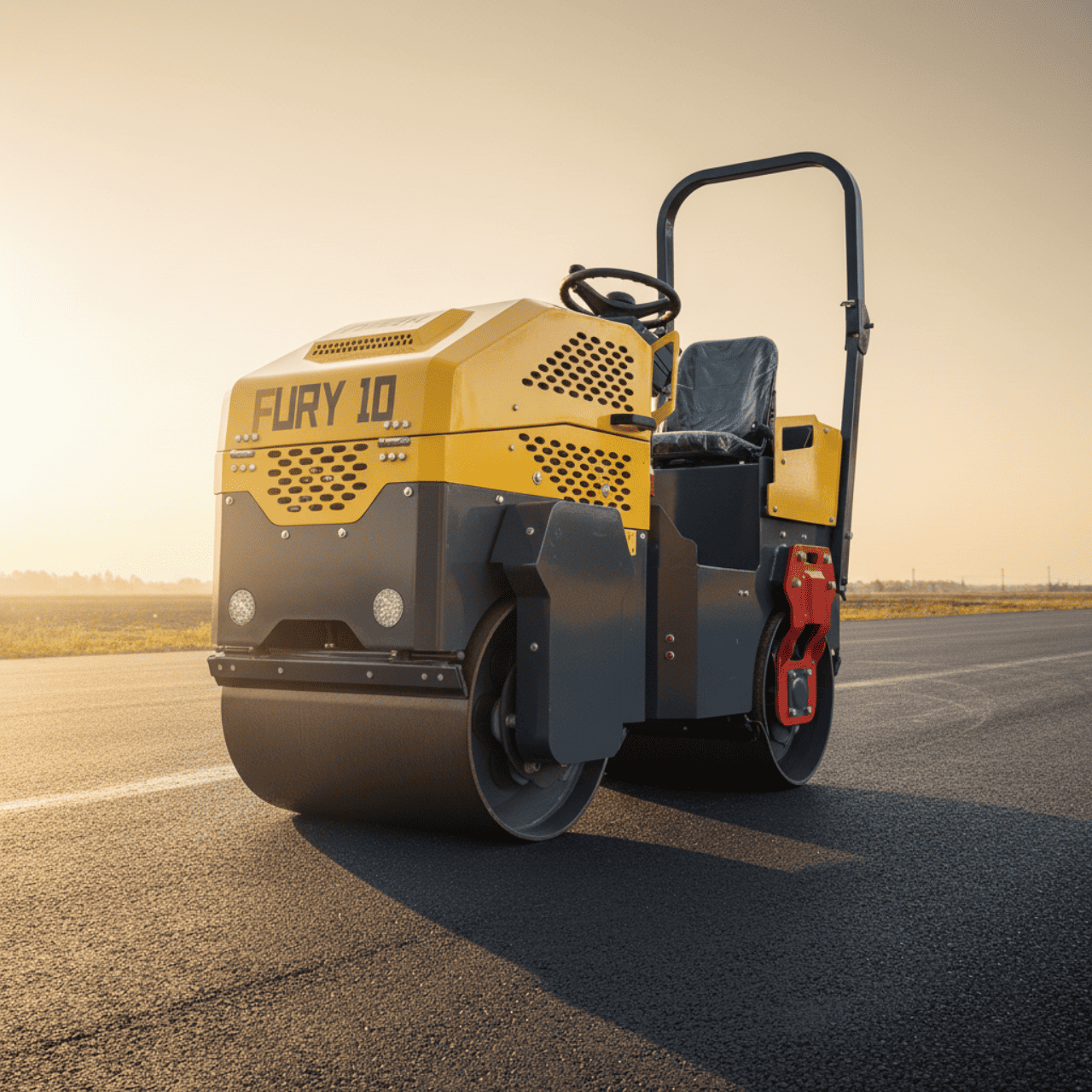

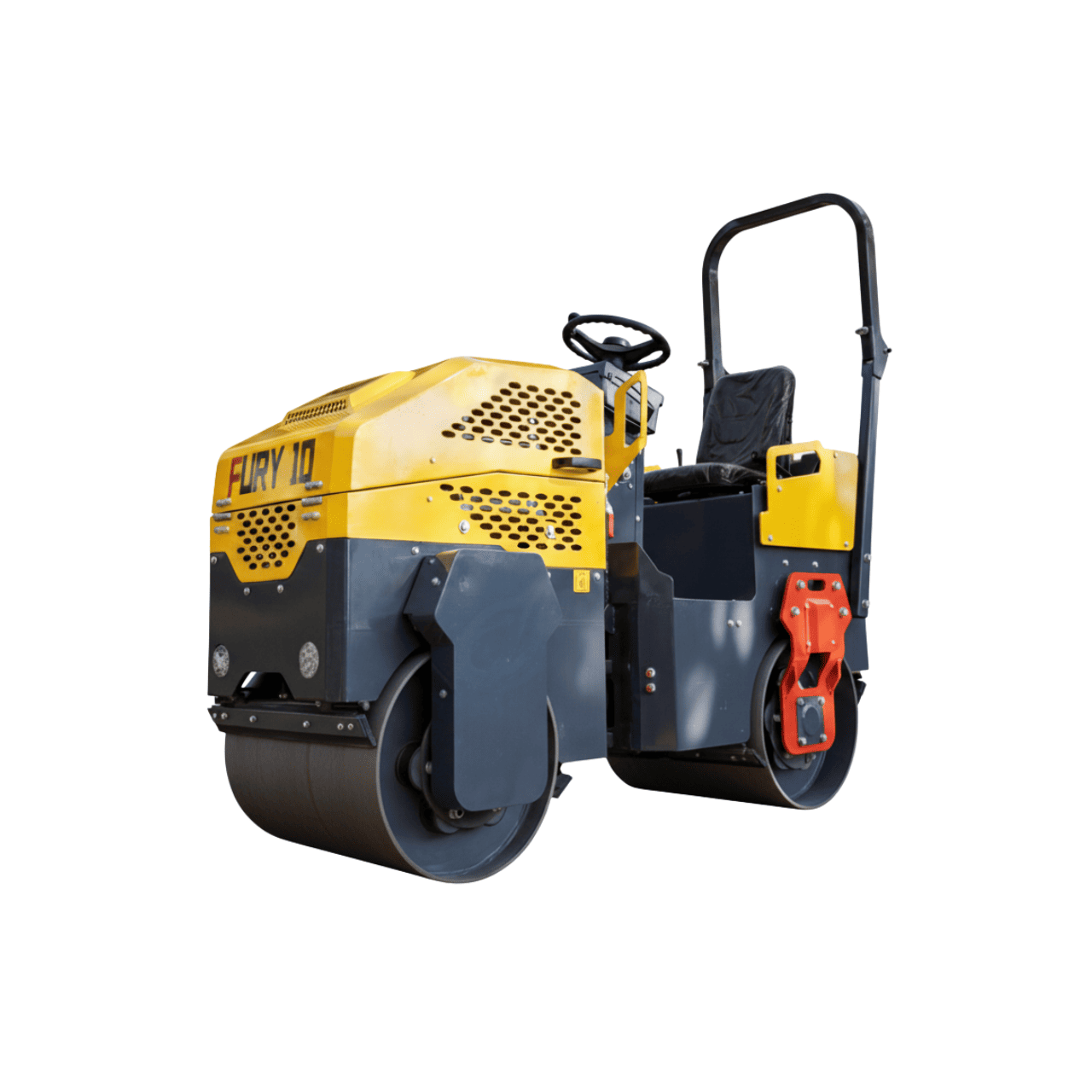

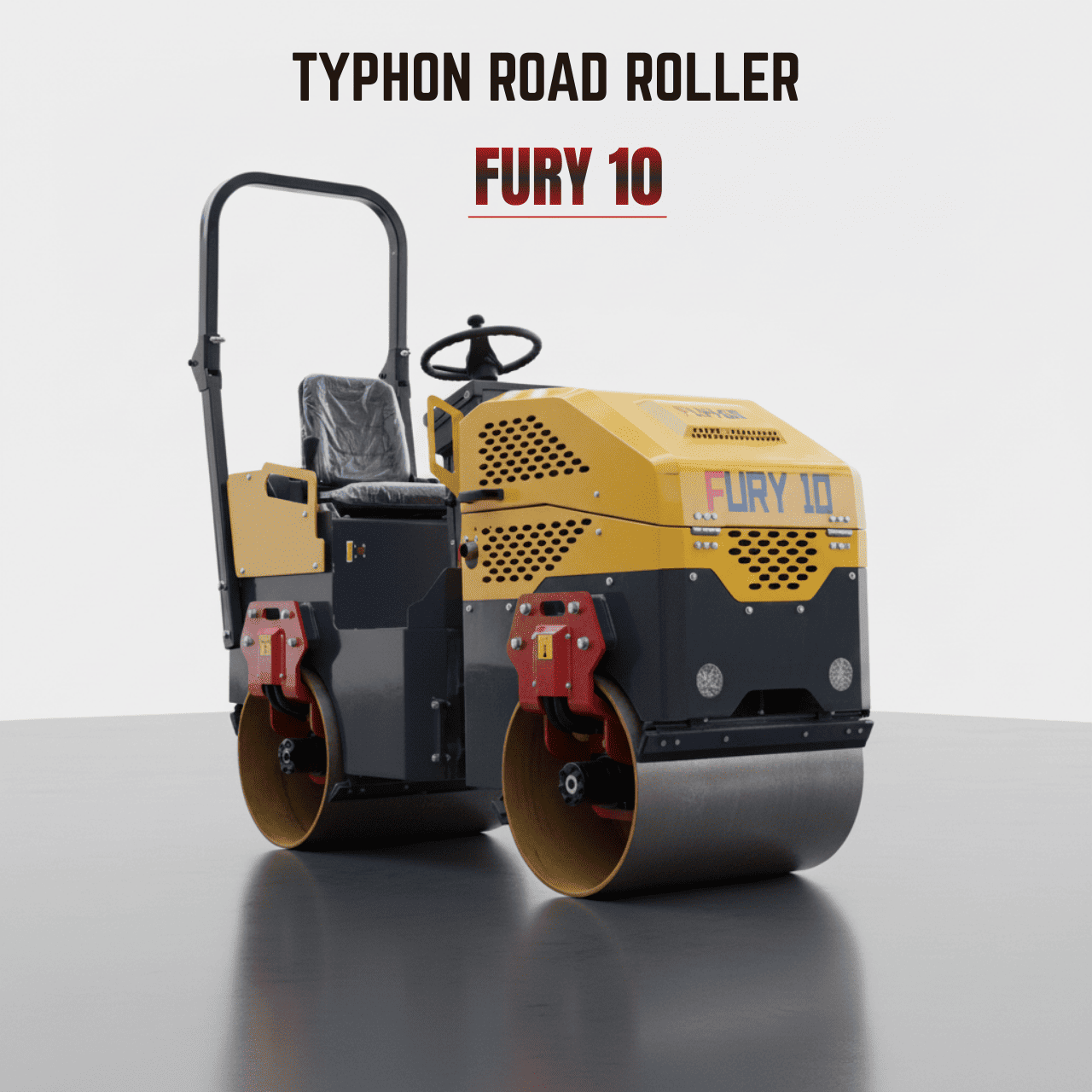

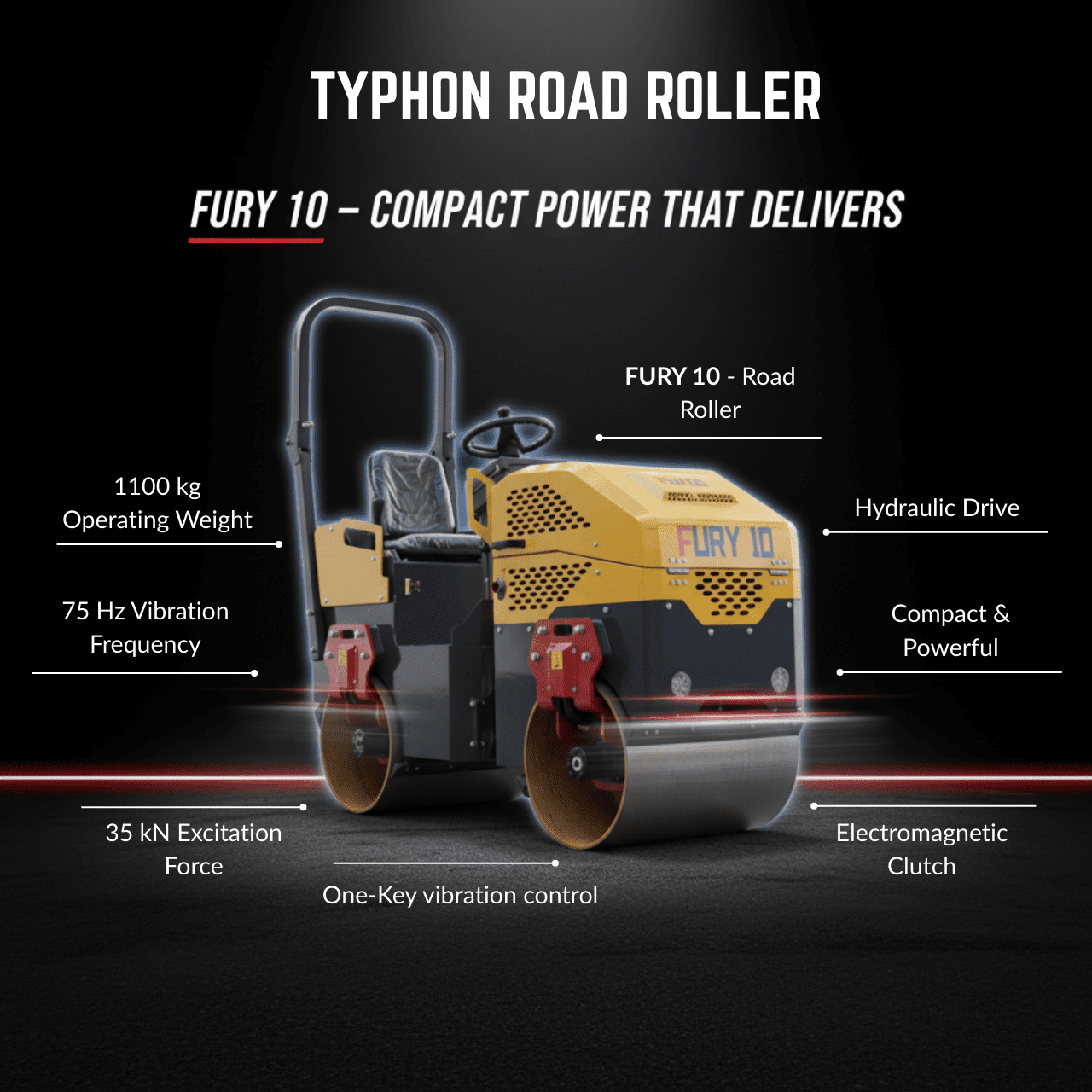

The TYPHON Fury 10 Mini Road Roller is a compact compaction machine for smaller roadwork, driveway, landscaping, and surface-preparation projects. Its 700 mm drum width and 1,100 kg listed working weight make it a model to evaluate where a smaller roller footprint is useful. The specification sheet lists a 13.5 HP Briggs & Stratton gasoline, air-cooled four-stroke engine, hydraulically actuated drive and steering, and a one-key vibration system with electromagnetic clutch.
Key Features

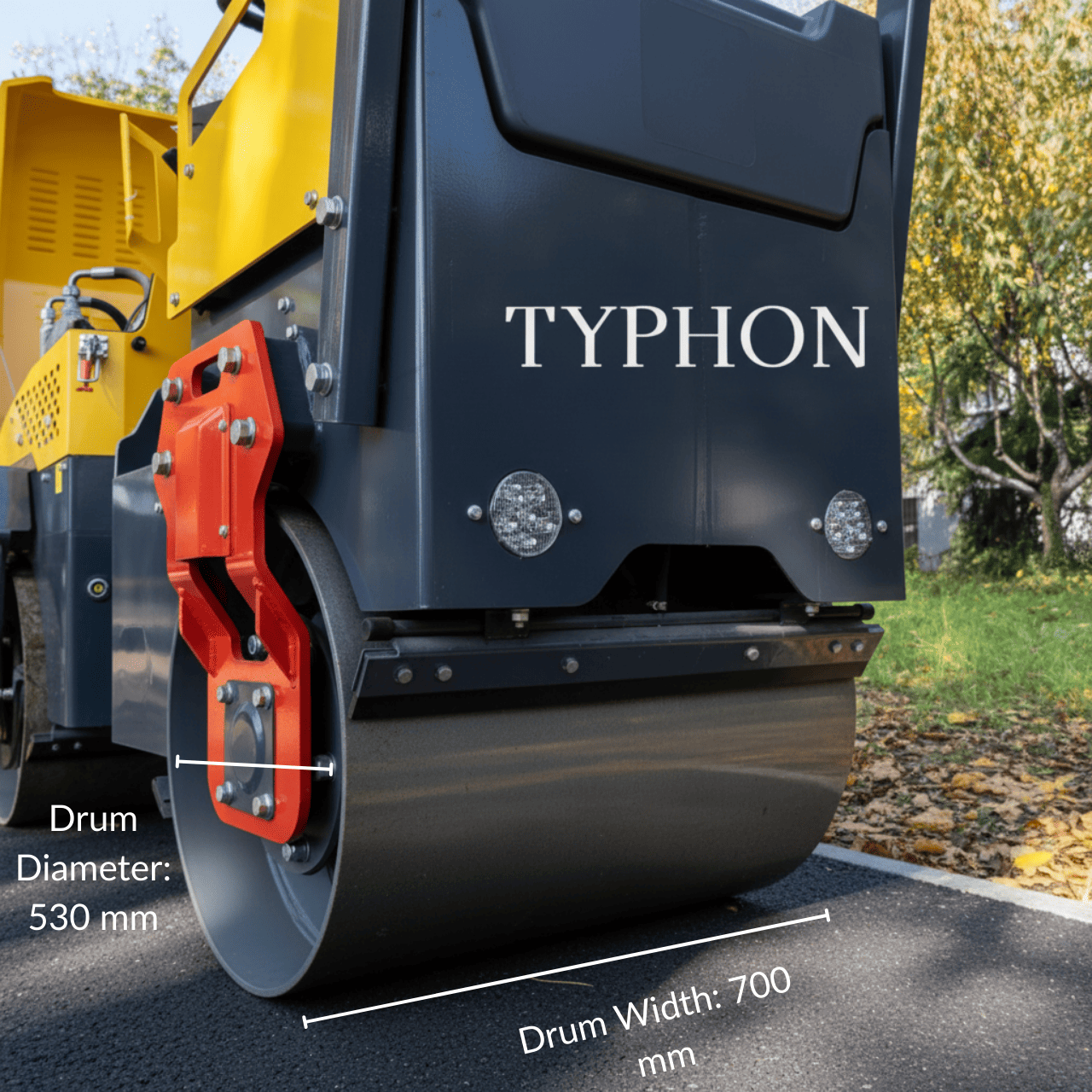

- Compact drum dimensions: A 700 mm drum width and 530 mm drum diameter are specified for surface compaction work in relatively confined areas.

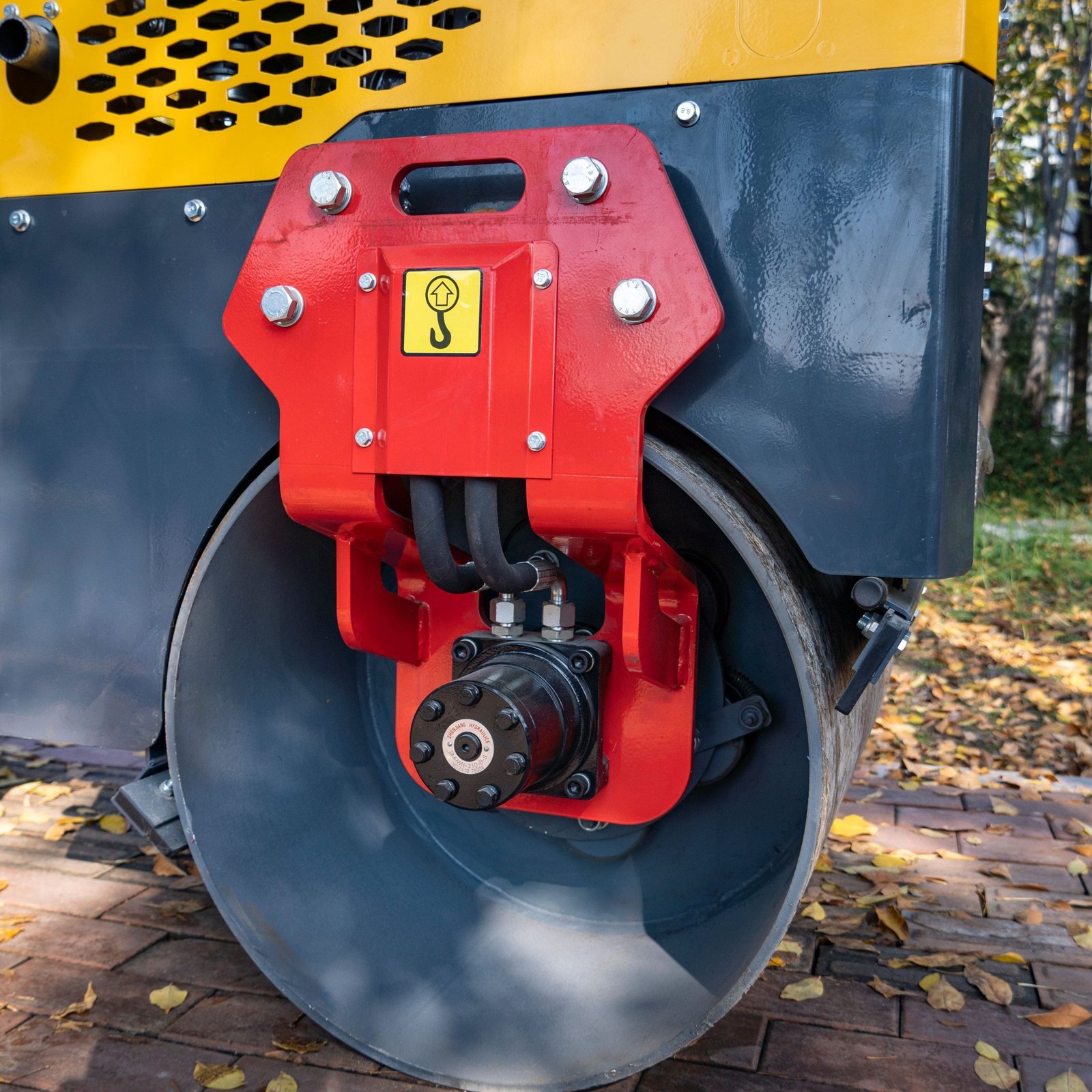

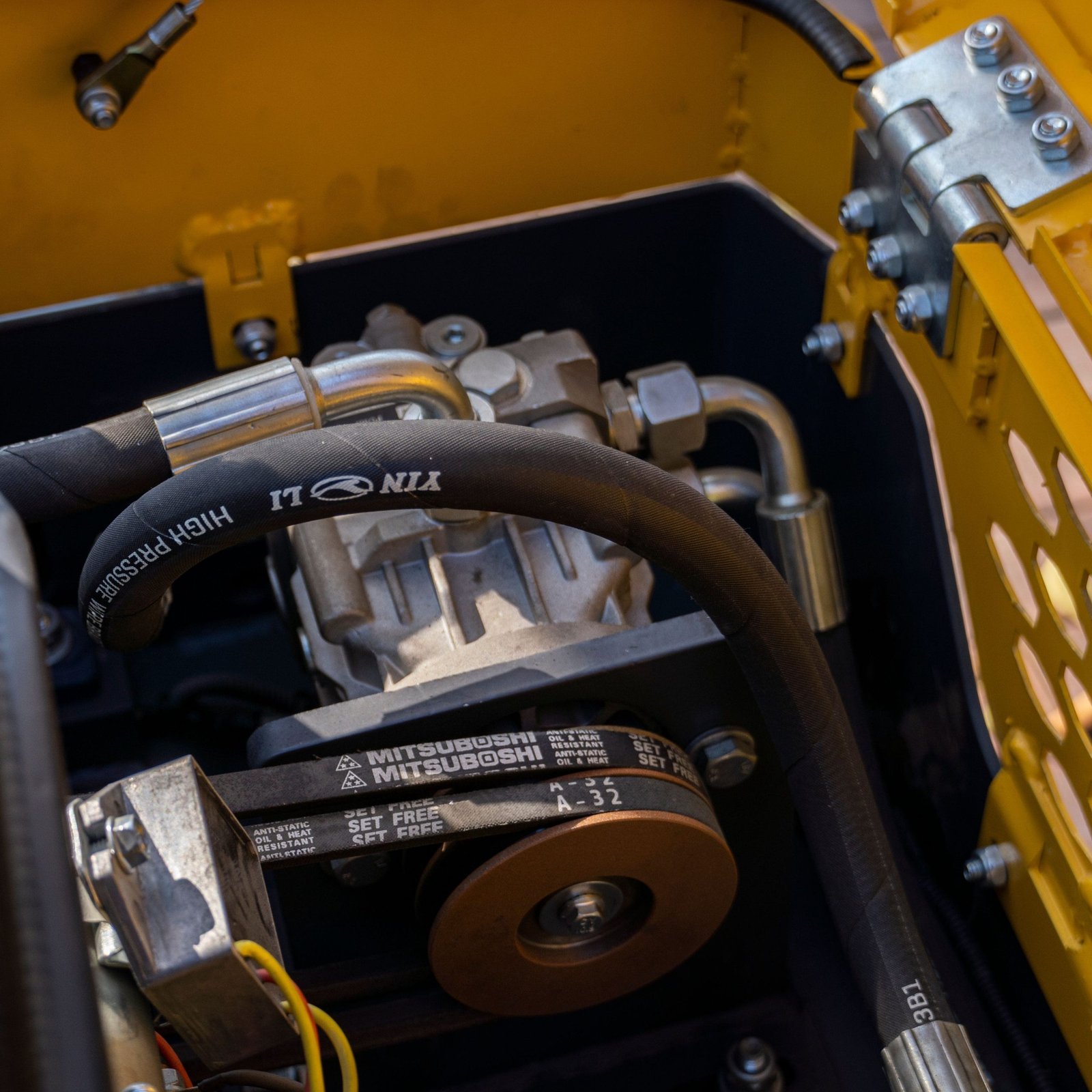

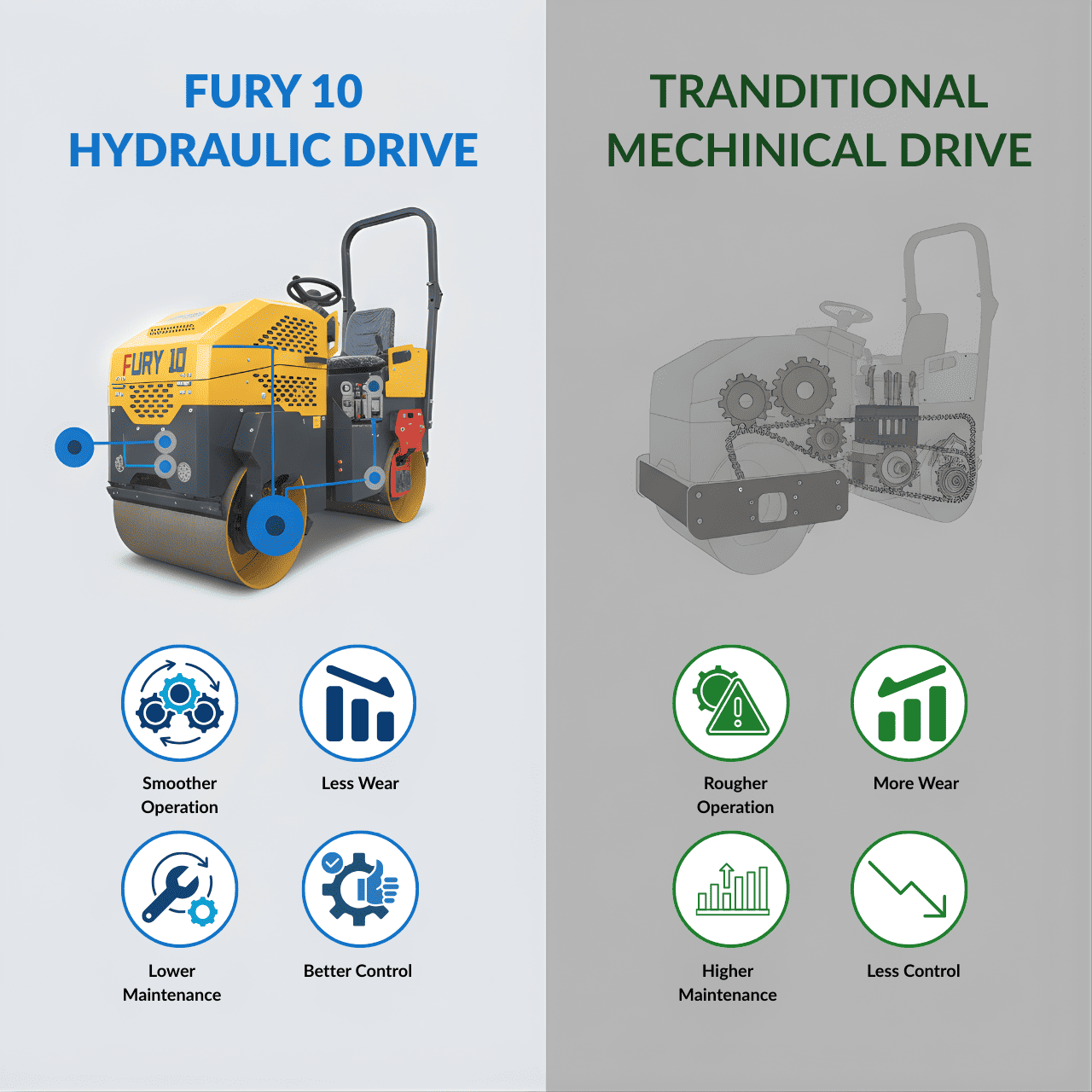

- Hydraulic operation: The listed drive and steering systems are hydraulically actuated, with dual-wheel drive across the front and rear.

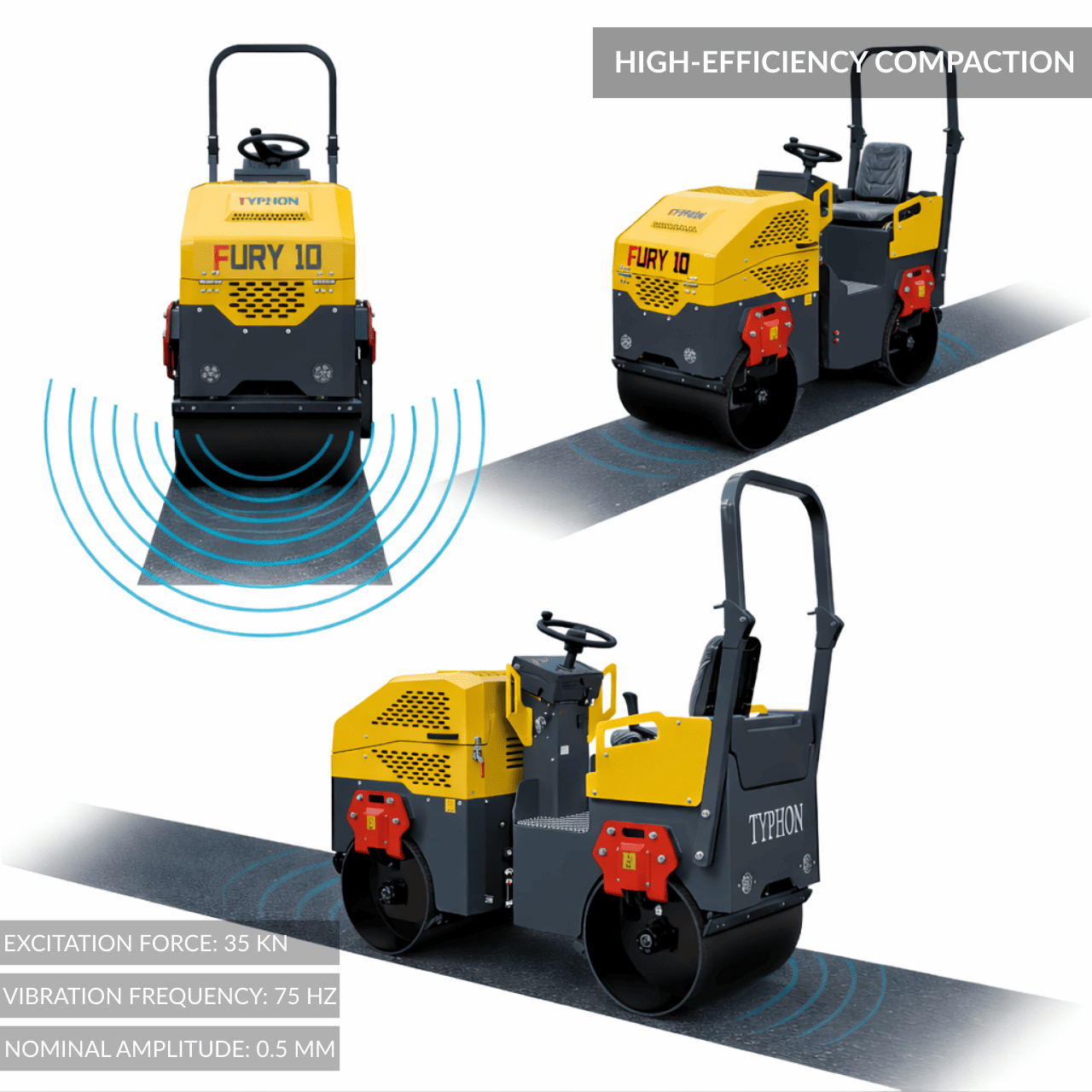

- One-key vibration: The specification sheet identifies one-key vibration with an electromagnetic clutch, plus a 75 Hz vibration frequency and 35 kN excitation force.

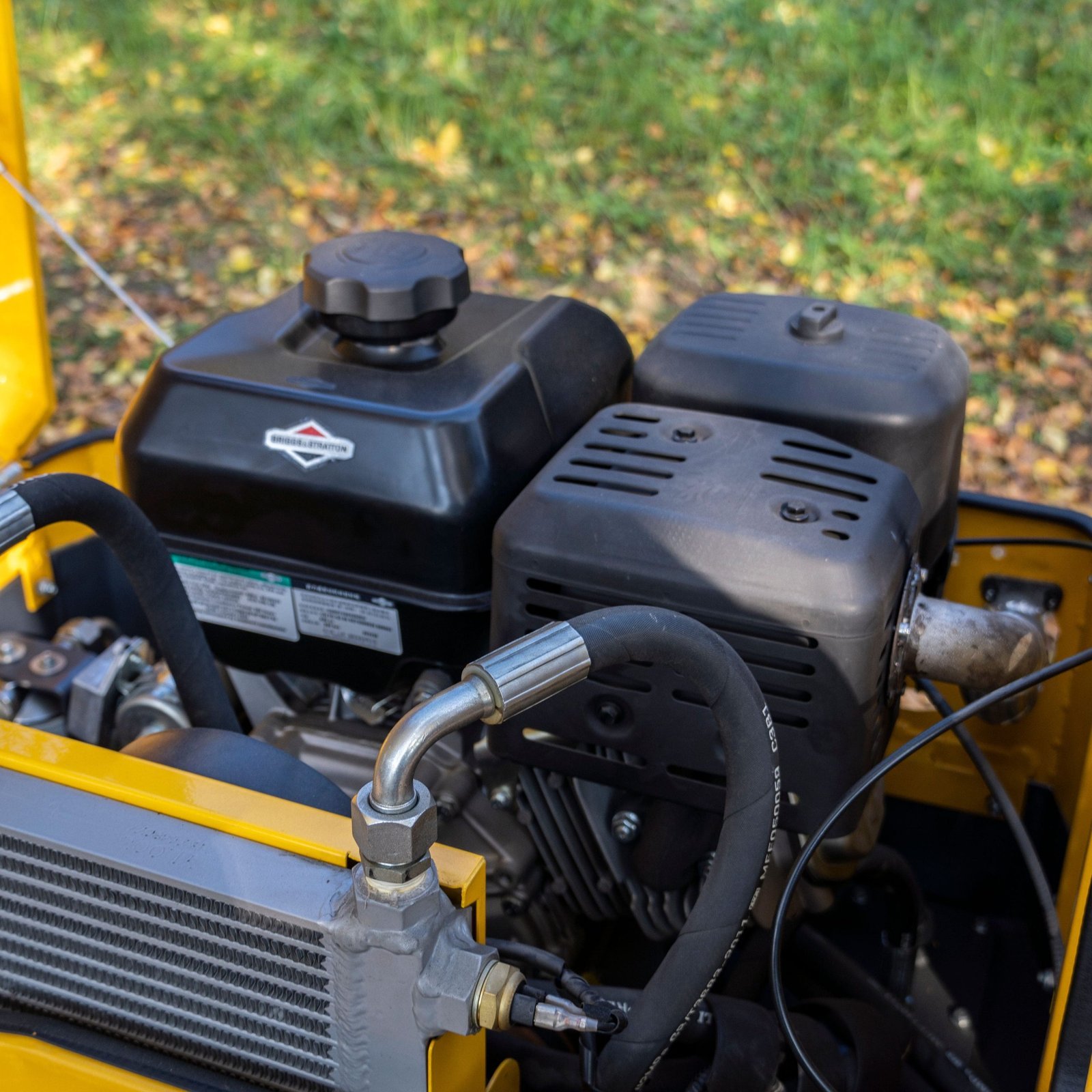

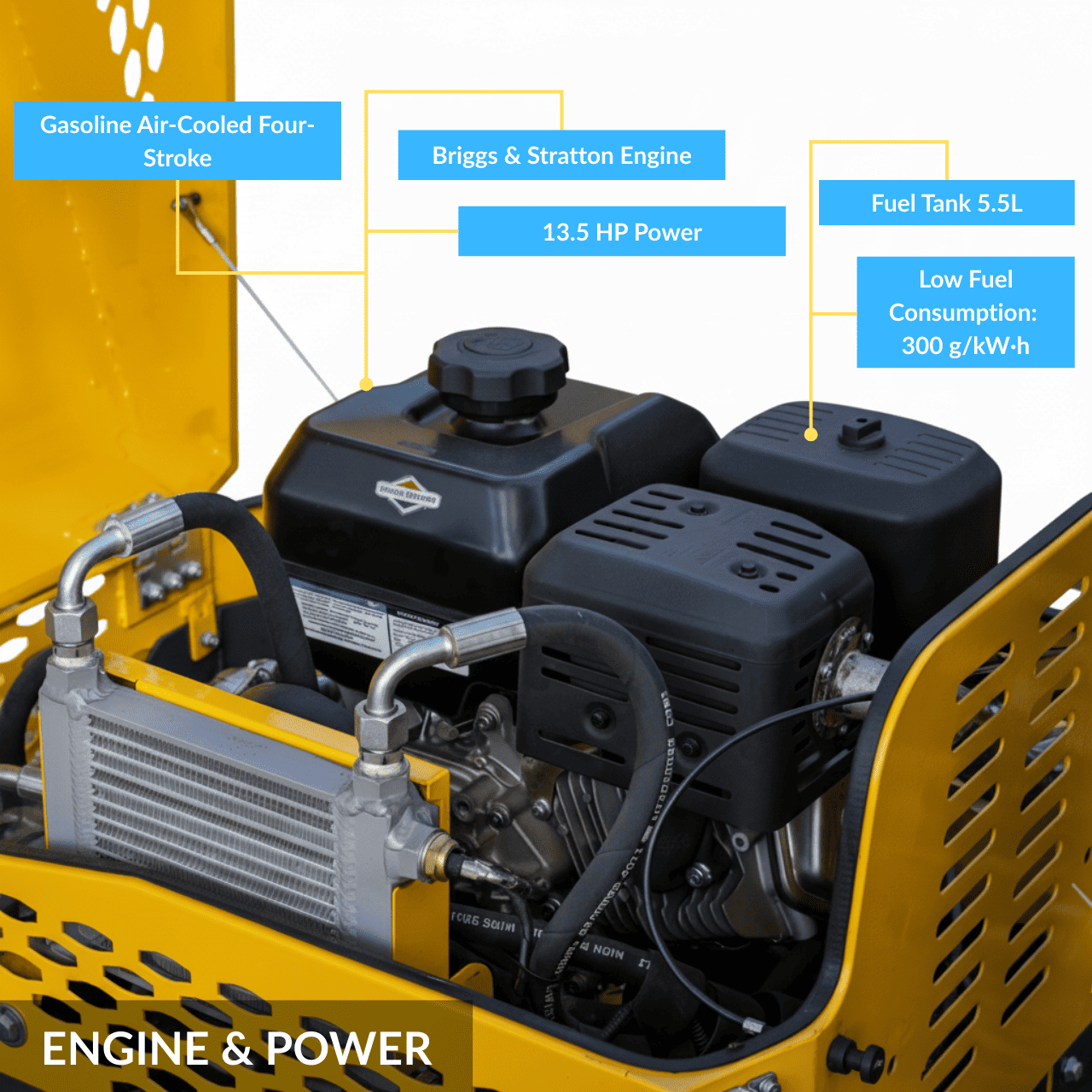

- Gasoline engine: Powered by a 13.5 HP Briggs & Stratton gasoline, air-cooled four-stroke engine, with a listed 5.5 L tank capacity.
Suitable Applications

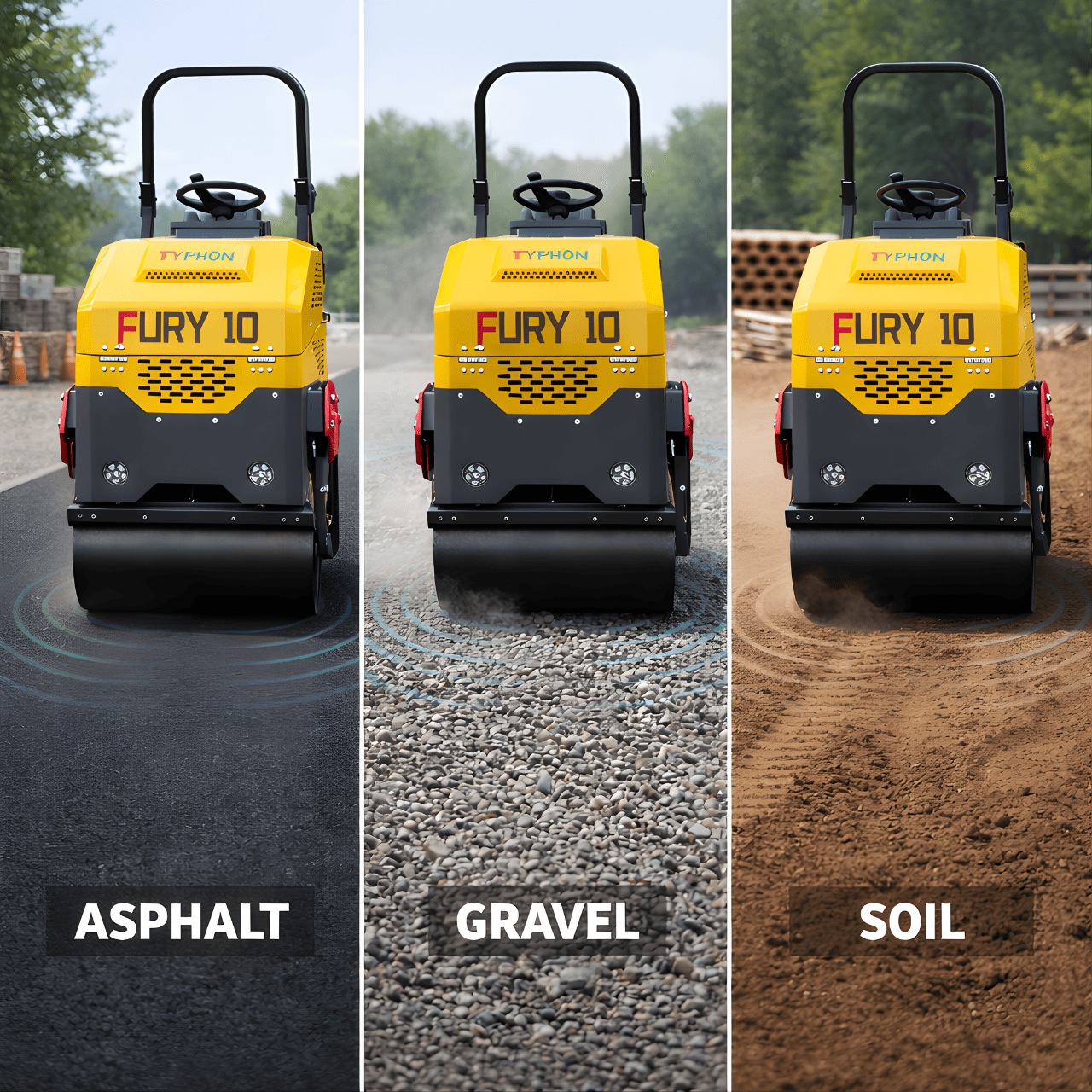

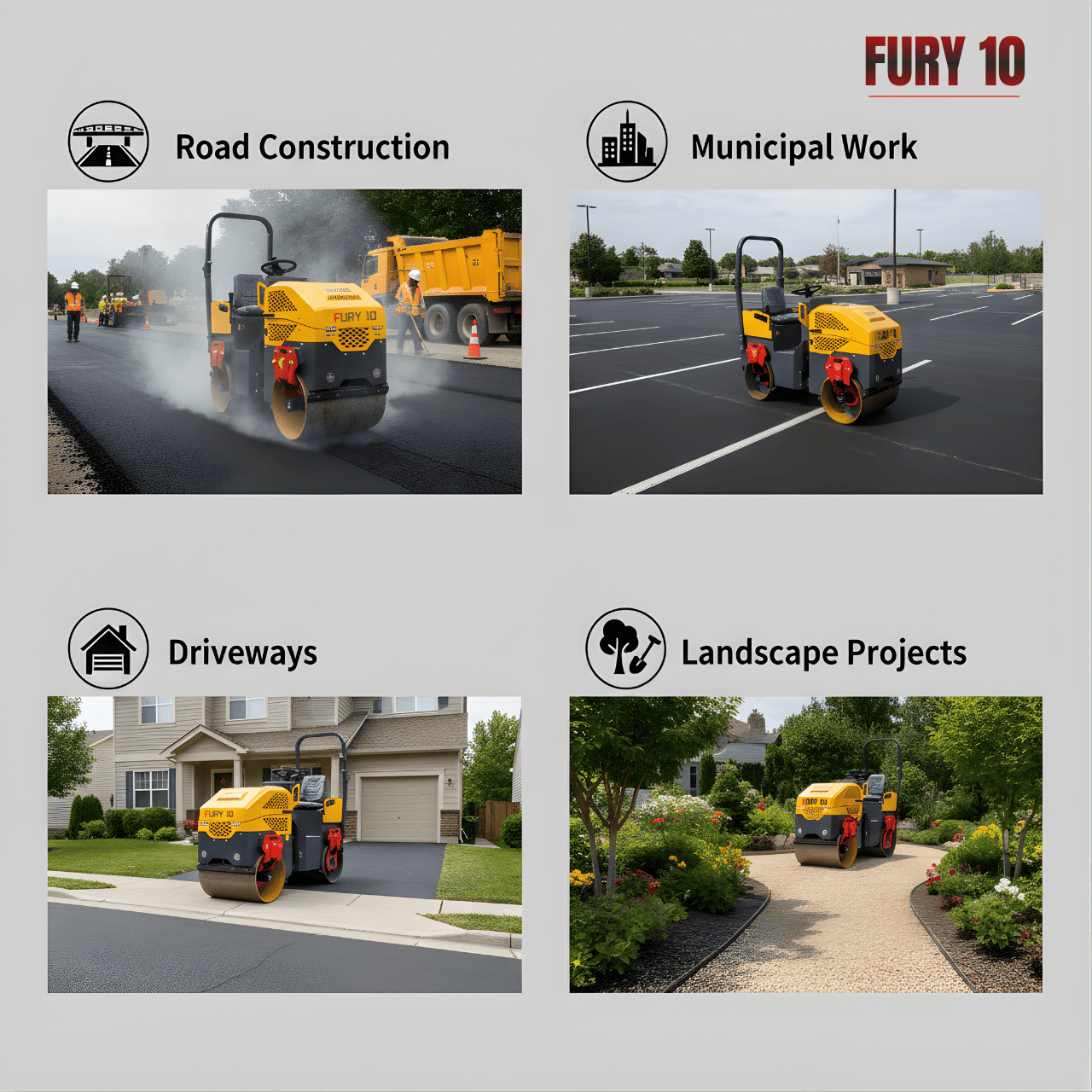

Consider the Fury 10 for suitable compaction tasks on asphalt, soil, and gravel, such as smaller road sections, driveways, parking areas, and landscaping projects. Check the surface material, required compaction depth, site gradient, and access width before selecting a roller.
Technical Specifications
| Specification | Metric Value | Metric Value |
|---|---|---|

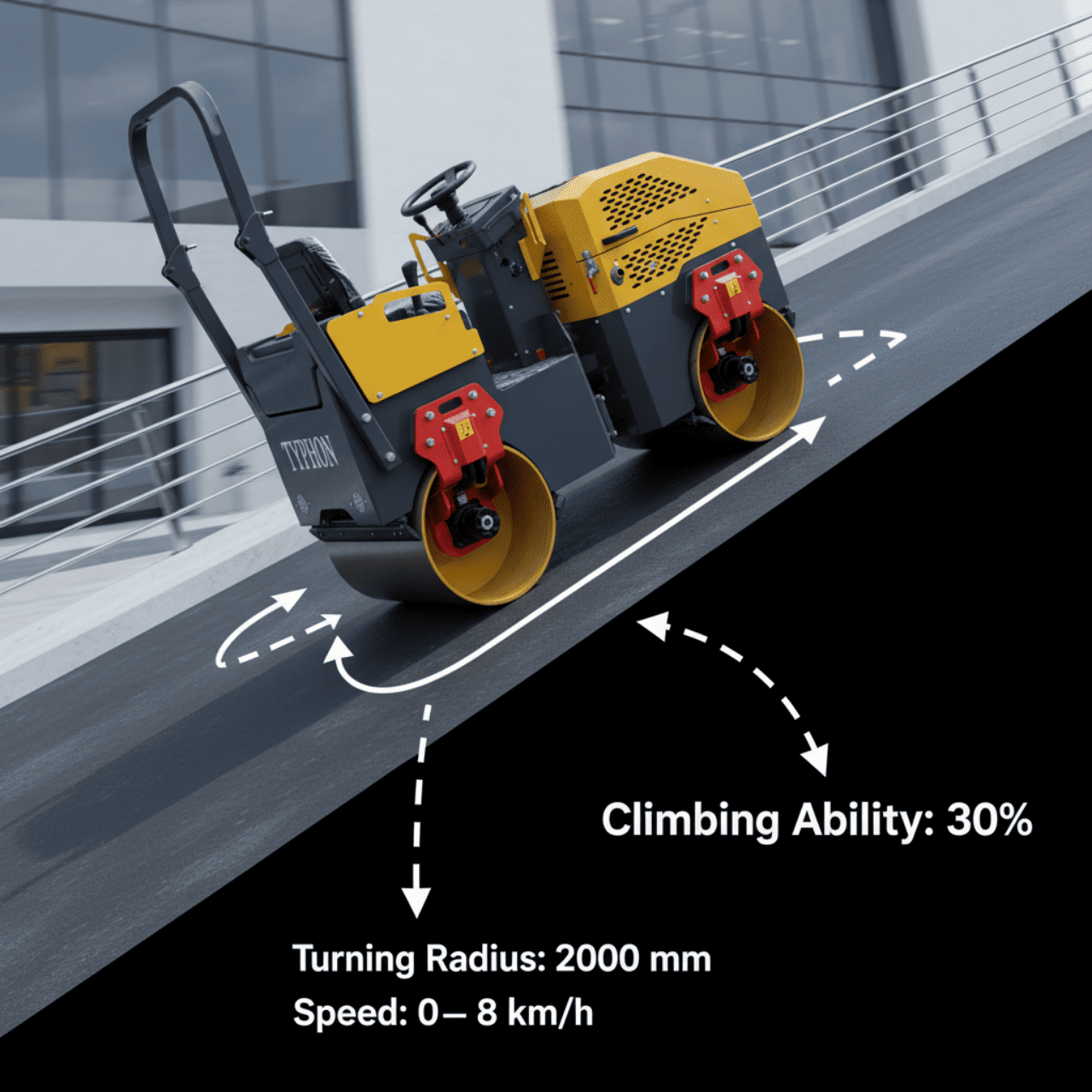

| Travel speed | 0–4.97 mph | 0–8 km/h |
| Turning radius | 6.56 ft | 2,000 mm |
| Climbing ability | 0.3 | 0.3 |
| Compaction force | 77 / 56 N/cm | 77 / 56 N/cm |
| Nominal amplitude | 0.0197 in | 0.5 mm |
| Vibration frequency | 75 Hz | 75 Hz |
| Excitation force | 7,868 lbf | 35 kN |
| Drive | Hydraulically actuated | Hydraulically actuated |
| Drive detail | Dual wheel drive (front and rear) | Dual wheel drive (front and rear) |

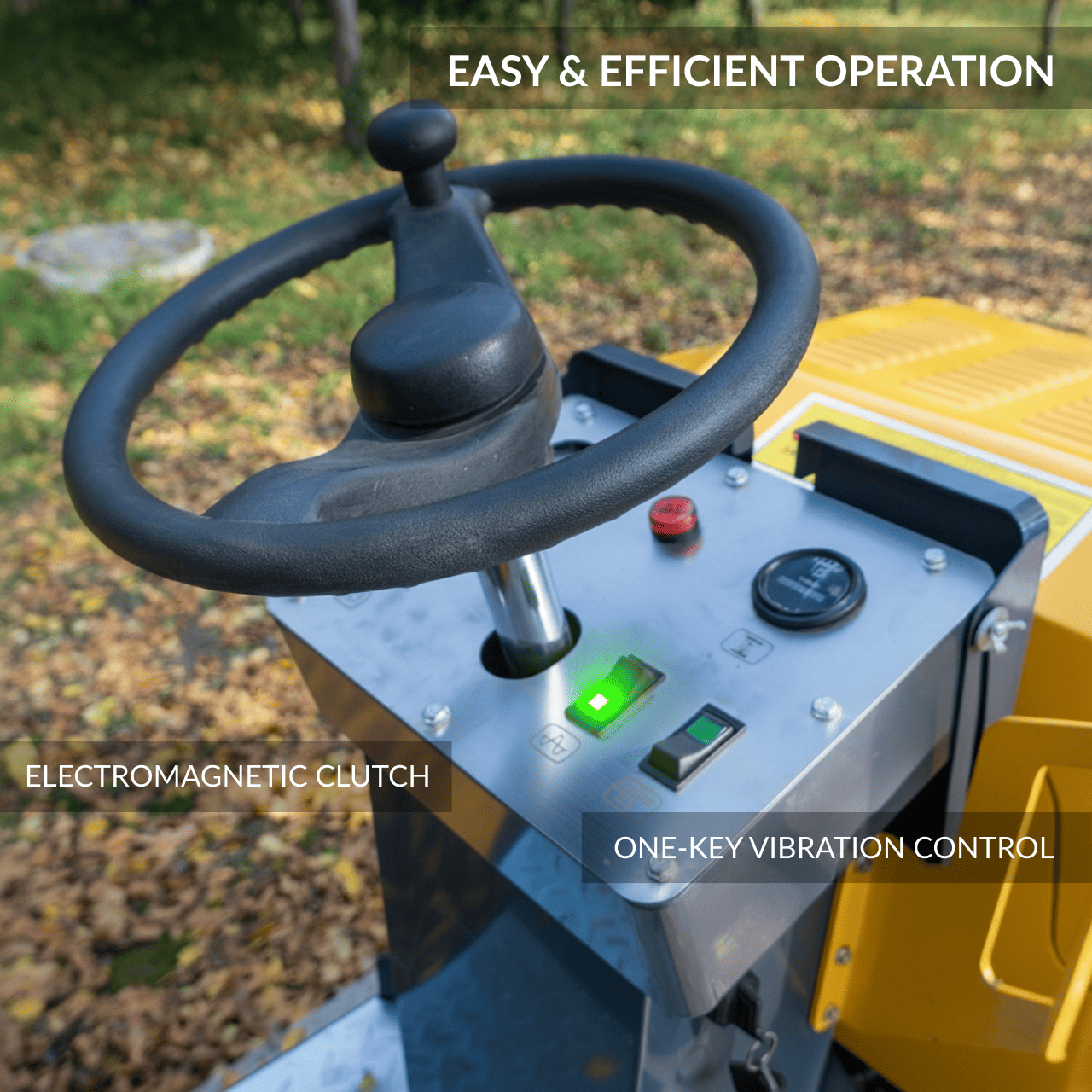

| Vibration | One-key vibration (electromagnetic clutch) | One-key vibration (electromagnetic clutch) |
| Steering | Hydraulically actuated | Hydraulically actuated |

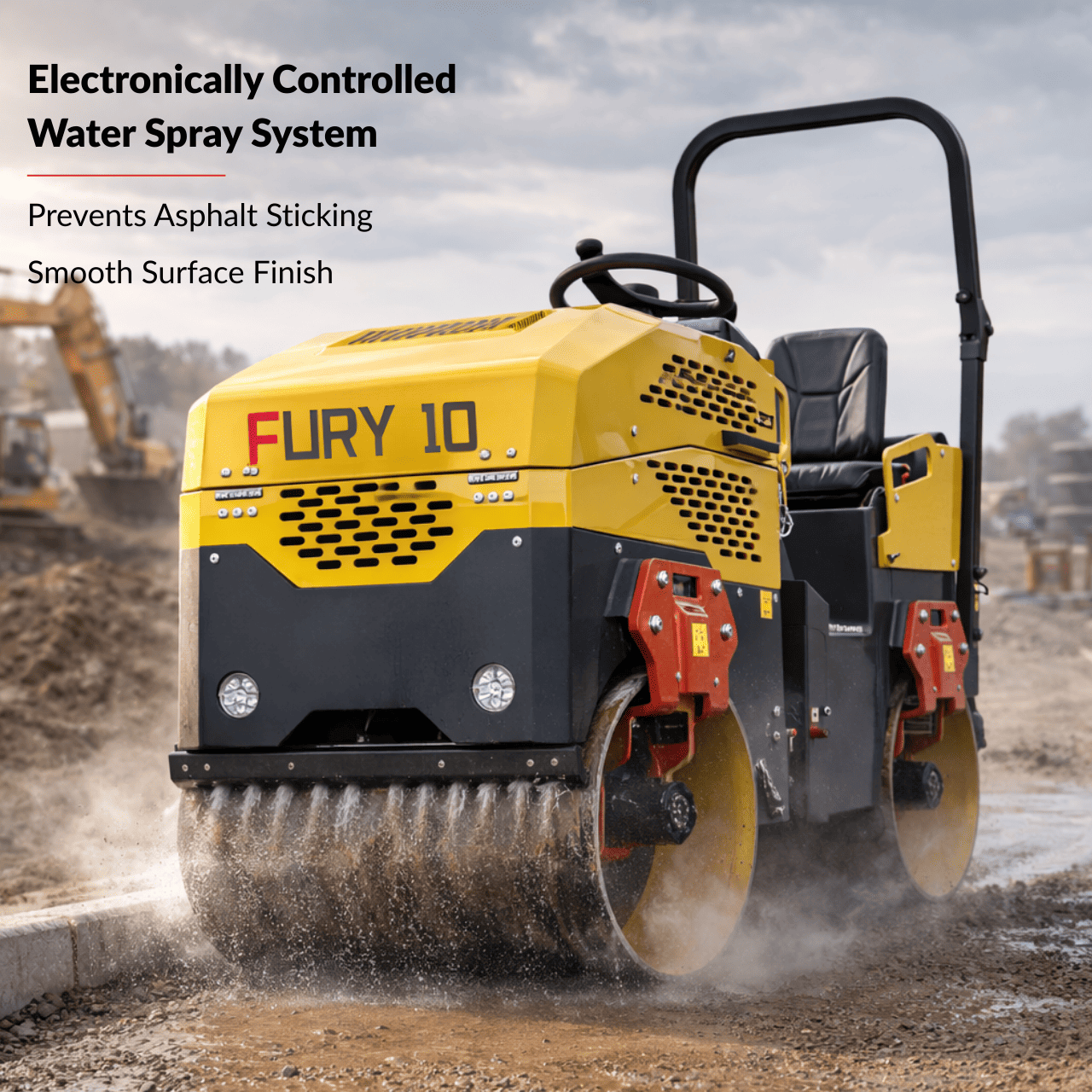

| Sprinkler method | Electronically controlled pressure spray | Electronically controlled pressure spray |
| Engine model | Briggs & Stratton | Briggs & Stratton |
| Engine type | Gasoline / air-cooled four-stroke | Gasoline / air-cooled four-stroke |
| Engine power | 13.5 HP | 13.5 HP |
| Tank capacity | 1.45 US gal | 5.5 L |
| Fuel consumption | 300 g/kWh | 300 g/kWh |
| Drum width | 27.56 in | 700 mm |
| Drum diameter | 20.87 in | 530 mm |

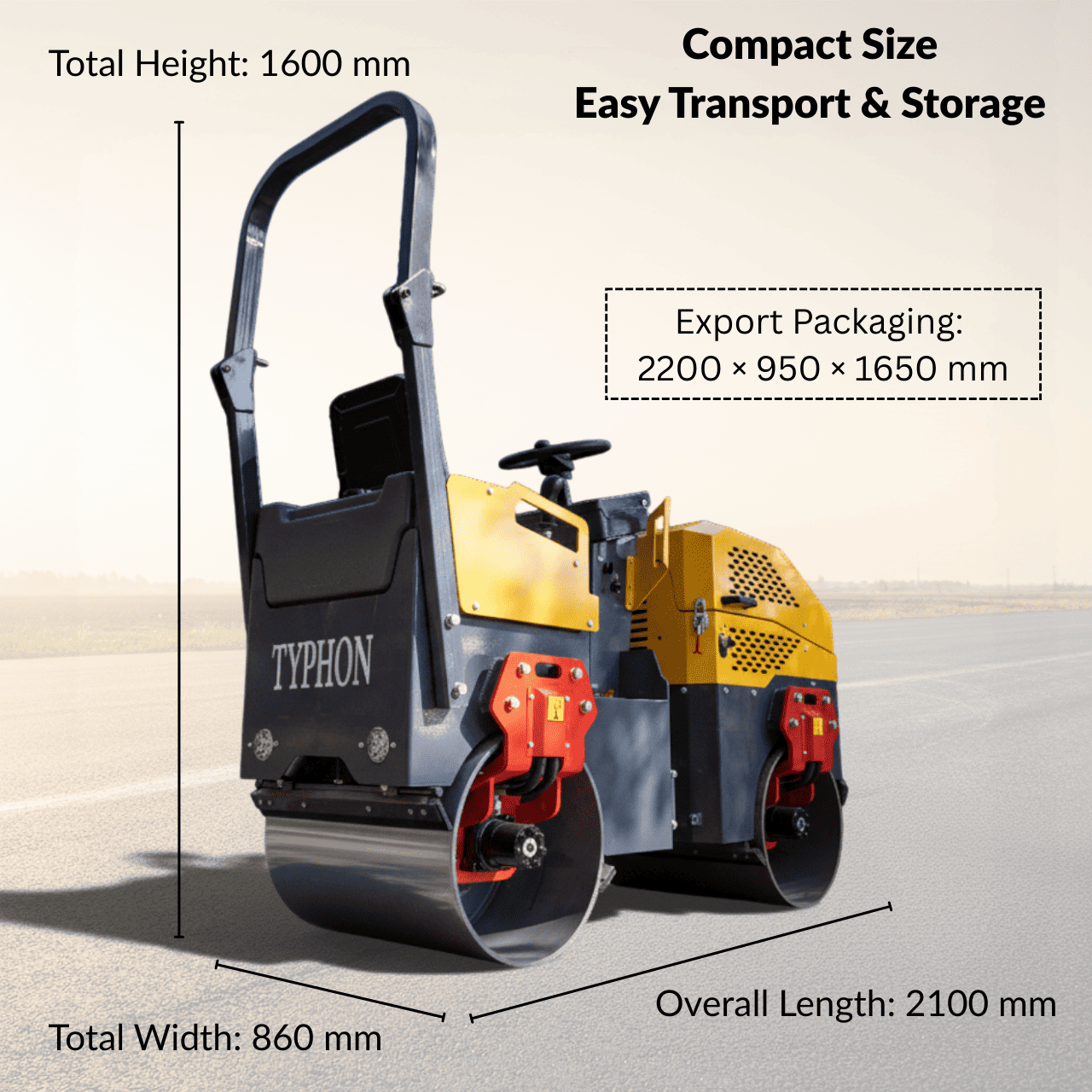

| Overall length | 6.89 ft (82.68 in) | 2,100 mm |
| Total width | 2.82 ft (33.86 in) | 860 mm |
| Total height | 5.25 ft (62.99 in) | 1,600 mm |
| Export packaging size | 7.22 × 3.12 × 5.41 ft | 2,200 × 950 × 1,650 mm |

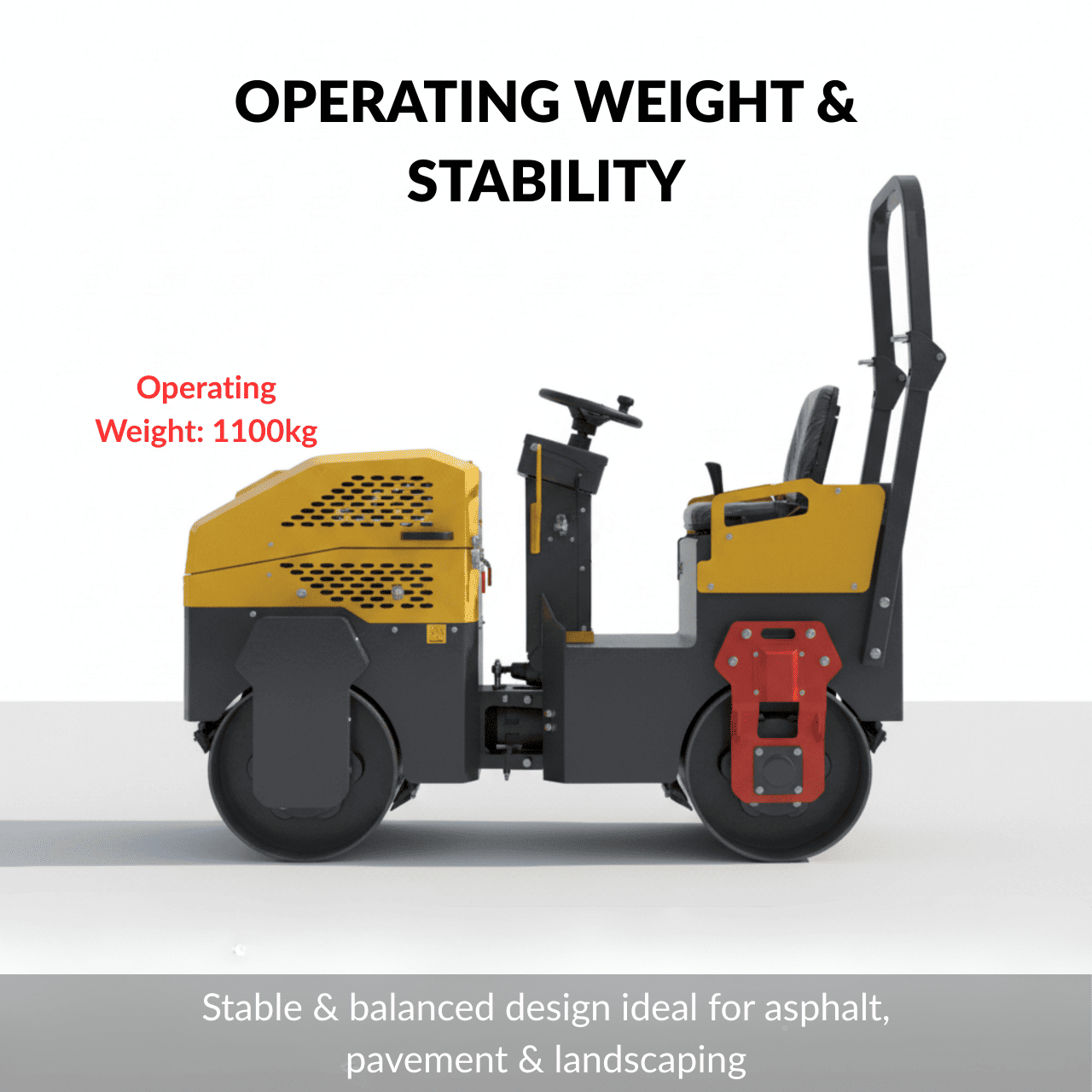

| Working weight | 2,425 lbs | 1,100 kg |
Specifications are based on the supplied product information. Confirm technical values and configuration with the manufacturer before purchase.
Choosing the Right Road Roller
Compare the drum width, working weight, turning radius, vibration settings, and engine requirements with your project needs. Follow the manufacturer’s operating guidance and verify that the listed working weight and compaction specifications meet your application.
Frequently Asked Questions
What engine is listed for the TYPHON Fury 10?
The supplied specifications list a 13.5 HP Briggs & Stratton gasoline, air-cooled four-stroke engine.
What is the drum width?
The listed drum width is 700 mm (27.56 inches).
What is the working weight?
The supplied specification sheet lists a working weight of 1,100 kg (2,425 lbs).
What vibration specifications are provided?
The sheet lists a 75 Hz vibration frequency, 0.5 mm nominal amplitude, and 35 kN excitation force.
